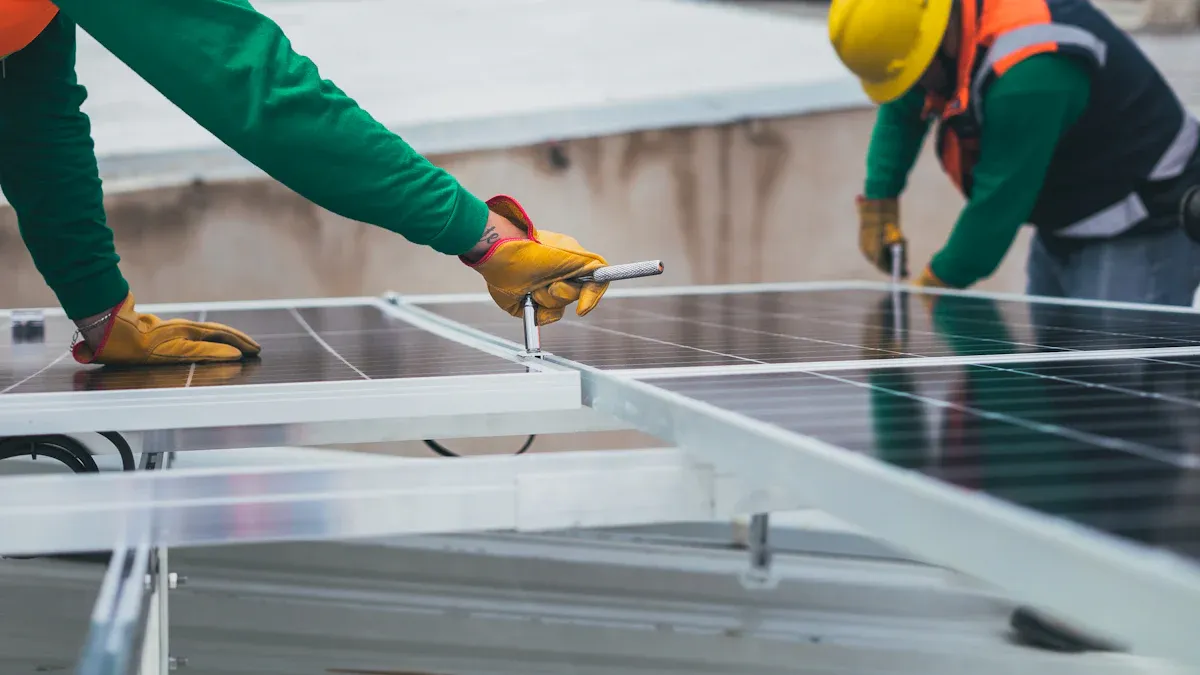

Do all solar panels use MC4 connectors?
- You often find MC4 Solar Connectors on most modern solar panels.
- MC4 solar connectors give you reliable and easy connections.
Tip: Check your MC4 solar connectors before installation to keep your system safe.
Key Takeaways
- Most modern solar panels use MC4 connectors because they offer easy, safe, and weatherproof connections.
- Always identify your solar connector type by checking its shape, locking tab, and manufacturer details before buying cables or adapters.
- Use the right adapters and follow safety steps to connect different solar connectors and protect your system from damage or hazards.
Types of Solar Connectors: MC4 and Others
MC4 Solar Connectors
You will see MC4 solar connectors on most new solar panels today. These connectors help you make quick and safe connections. MC4 solar connectors have a simple push-and-click design. You do not need special tools to connect or disconnect them. This makes your installation process much easier.
Note: MC4 solar connectors are weatherproof. You can use them outdoors without worrying about rain or dust.
You can also find MC4 solar connectors in many solar kits. They work well with most inverters and charge controllers. If you want a reliable and easy option, MC4 solar connectors are a great choice.
MC3 and Other Solar Connectors
Before MC4 solar connectors became popular, you could find MC3 connectors on many solar panels. MC3 connectors look similar, but they do not lock as securely as MC4 solar connectors. You might see MC3 connectors on older systems.
Other types of solar connectors include:
- Amphenol H4 connectors
- Tyco Solarlok connectors
- Radox connectors
Each type has its own shape and locking method. You need to check your panel before you buy cables or adapters.
| Connector Type | Locking Mechanism | Common Use |
|---|---|---|
| MC4 | Snap-lock | Modern panels |
| MC3 | Push-fit | Older panels |
| Amphenol H4 | Snap-lock | Some new panels |
| Tyco Solarlok | Push-fit | Special systems |
Proprietary Solar Connectors
Some solar panel brands use their own special connectors. These are called proprietary connectors. You may find these on certain high-end or unique panels. Proprietary connectors do not always work with MC4 solar connectors or other standard types.
If your panel uses a proprietary connector, you must use the matching cable or adapter. You should always check the manufacturer’s guide before you try to connect anything.
Tip: Ask your supplier if you are not sure about your connector type. This helps you avoid mistakes and keeps your system safe.
How to Identify Your Solar Connector Type
Visual Inspection of Solar Connectors
You can start by looking closely at your solar panel connectors. MC4 connectors have a black, cylindrical shape with a locking tab on the side. MC3 connectors look slimmer and do not have a locking tab. Proprietary connectors often have unique shapes or colors. You may see brand logos or special markings on these connectors.
Tip: Take a clear photo of your connector before you buy cables or adapters. This helps you match the right type.
You can use this simple checklist when you inspect your connectors:
- Check the color and shape.
- Look for locking tabs or clips.
- Find any brand markings or model numbers.
Checking Manufacturer Specifications
You can find connector information in your solar panel’s manual or datasheet. Manufacturers list the connector type in the technical details. You may see names like “MC4,” “MC3,” or a brand-specific connector.
| Where to Look | What You Find |
|---|---|
| Product manual | Connector type |
| Datasheet | Model and specs |
| Panel label | Brand and connector |
If you do not have the manual, you can search the model number online. Manufacturers often post datasheets on their websites.
Consulting Your Supplier
You can ask your supplier or installer if you feel unsure about your connector type. Suppliers know the products well and can help you identify the right connector. You may send them a photo or describe the connector’s features.
Note: Always confirm your connector type before you buy new cables or adapters. This keeps your solar system safe and working well.
Compatibility and Safe Connection of Solar Connectors
Using Adapters for Different Solar Connectors
You may find that your solar panels and other equipment do not always use the same connector type. Sometimes, you need to connect MC4 ， solar connectors to other types, like MC3 or proprietary connectors. In these cases, you can use adapters. Adapters help you join different connector types safely and easily.
When you choose an adapter, make sure it matches both connector types. You should check the voltage and current ratings on the adapter. This helps you avoid overheating or damage. Many suppliers offer adapters for MC4 ， solar connectors, so you can find the right one for your system.
Tip: Always buy adapters from trusted brands. Cheap or low-quality adapters may not last long or could cause safety problems.
Here is a simple table to help you choose the right adapter:
| Connector 1 | Connector 2 | Use Adapter? | Check Ratings? |
|---|---|---|---|
| MC4 | MC3 | Yes | Yes |
| MC4 | Proprietary | Yes | Yes |
| MC4 | MC4 | No | Yes |
Safety Tips for Connecting MC4 and Other Connectors
You need to follow safety steps when you connect solar panels. This keeps you and your system safe. Here are some important tips:
- Turn off all power before you start working.
- Wear gloves to protect your hands.
- Make sure connectors are clean and dry.
- Push connectors together until you hear a click.
- Do not force connectors if they do not fit.
Note: If you see any damage or rust on your connectors, replace them before you use your system.
You should also check the connection after you finish. Gently pull on the connectors to make sure they are locked. Loose connections can cause heat and may lead to fires.
Risks of Improper Solar Connector Installation
Improper installation of solar connectors can cause many problems. If you do not connect MC4 ， solar connectors the right way, you may face these risks:
- Loose connections can cause sparks or fires.
- Water can get inside and cause rust or short circuits.
- Poor connections can lower your system’s power output.
- Using the wrong adapter can damage your equipment.
You should always follow the manufacturer’s instructions. If you feel unsure, ask a professional for help.
Warning: Never mix different connector types without the right adapter. This can lead to dangerous situations.
Safe installation protects your solar system and helps it last longer. You get better performance and peace of mind when you use the right connectors and follow safety steps.
You should always check your solar connector type before you start any installation. Use the correct adapters and follow safety steps when working with MC4 ， solar connectors. This helps you keep your system safe and ensures strong, reliable performance.
Remember: Careful planning protects your investment.
FAQ
Do all solar panels come with MC4 connectors?
Most new solar panels use MC4 connectors. Some older panels or special brands use different connectors.
Tip: Always check your panel before buying cables.
Can you mix MC4 connectors with other types?
You can use adapters to connect MC4 connectors to other types.
- Always match voltage and current ratings.
- Never force connectors together.
How do you know if your connector is MC4?
MC4 connectors look black and round with a locking tab.
| Feature | MC4 Connector |
|---|---|
| Color | Black |
| Shape | Cylindrical |
| Locking Tab | Yes |
