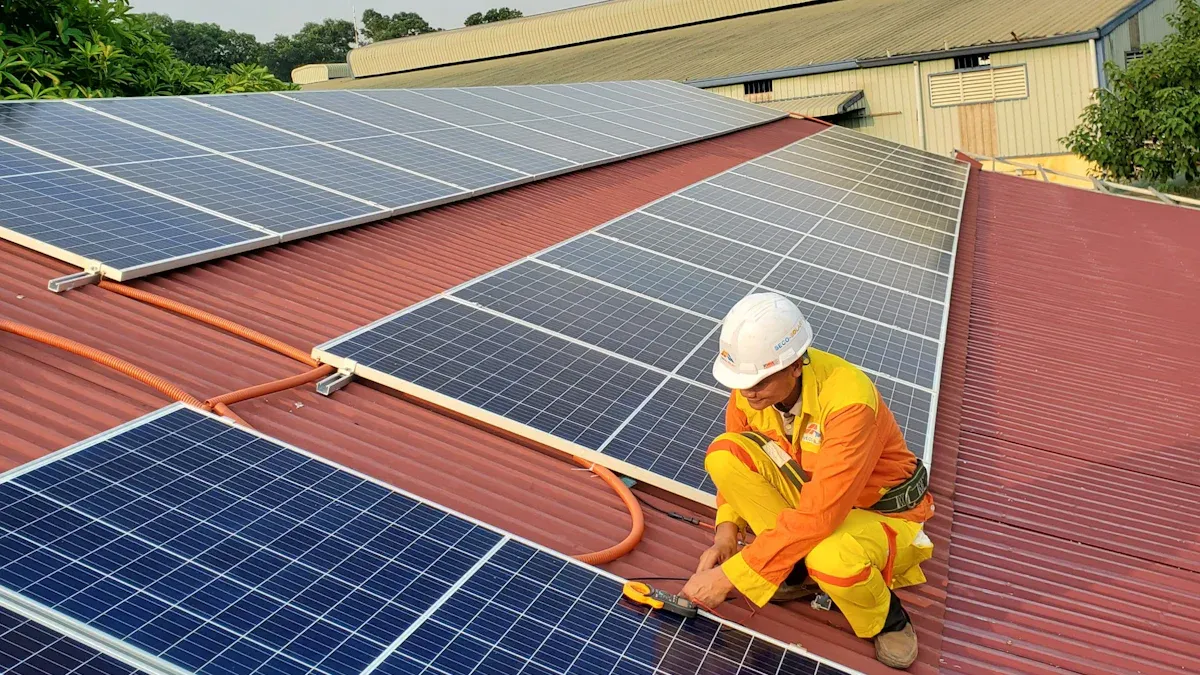

Do all solar panels use the same connectors?

You might think all solar panels use the same connectors, but that is not true. MC4 connectors appear most often. Some panels use MC3 or special connectors. Always check your connectors before installation. This helps you keep your system safe and working well.

Key Takeaways

• Most solar panels use MC4 connectors that snap and lock securely, making installation easy and safe.
• Different connectors like MC3 or proprietary types may need special adapters to connect properly.
• Always check your connectors before installation and follow safety rules to avoid damage and keep your solar system working well.

Types of Solar Panel Connectors

MC4 Connectors

You will see MC4 connectors on most modern solar panels. These connectors snap together easily and lock in place. You can use them outdoors because they resist water and dust. MC4 connectors help you connect panels quickly and safely. Many installers prefer them because you do not need special tools for basic connections.

Tip: Always check that the MC4 connectors click tightly. Loose connections can cause power loss or safety problems.

MC3 Connectors

MC3 connectors came before MC4. You may find them on older solar panels. MC3 connectors look slimmer and do not lock as tightly. You should handle them with care. If you use MC3 connectors, make sure you keep them dry and clean.

• MC3 connectors do not offer the same weather protection as MC4.
• You might need adapters if you want to connect MC3 panels to MC4 systems.

Proprietary Connectors

Some solar panel brands use their own connectors. These proprietary connectors may look different from MC4 or MC3. You must use the matching connectors from the same brand.

Note: Proprietary connectors can make upgrades harder. You may need special adapters or cables if you want to mix brands.

You should always identify your connector type before you start installation. This helps you avoid mistakes and keeps your solar system safe.

Compatibility and Connecting Different Connectors

Identifying Your Connector Type

You need to know which connector type your solar panel uses before you start any installation. Look at the ends of the cables on your solar panel. MC4 connectors have a round, black shape with a locking clip. MC3 connectors look slimmer and do not have a locking system. Proprietary connectors may have a unique shape or color. You can also check the label or manual that comes with your solar panel. If you feel unsure, take a photo and compare it with images online or ask your supplier for help.

Tip: Always double-check the connector type before buying extra cables or accessories.

Using Adapters for Connectors

Sometimes, your solar panels and other equipment do not use the same connectors. You can use adapters to join different types. For example, you might have MC3 panels but need to connect them to Mc4 Cables. Adapters help you solve this problem without changing the whole system.

Here is a simple table to show common adapter uses:

You should always buy adapters from trusted brands. This helps you avoid poor connections and keeps your system safe.

Safety Tips for Mixing Connectors

Mixing different connectors can work, but you must follow safety rules. Always turn off the power before you connect or disconnect anything. Make sure the connectors fit tightly. Loose connections can cause heat and even fires. Never force connectors together if they do not match. Use only certified adapters.

• Check for any signs of damage or wear.
• Keep connectors dry and clean.
• Ask a professional if you feel unsure.

⚠️ Safety Alert: Never use tape or makeshift fixes to join connectors. This can lead to dangerous situations.

What to Do If Connectors Don’t Match

If your connectors do not match, you have a few options. You can buy the right adapter. You can also replace the cable ends with matching connectors, but this job needs special tools and skills. If you do not feel confident, call a solar installer for help.

• Do not try to cut and twist wires together.
• Always use proper tools and follow instructions.
• Make sure all connections are tight and secure.

Note: Using the wrong connectors or poor connections can damage your solar system and void your warranty.

You should always check your connectors before you install solar panels. Use matching connectors or certified adapters for safe connections. Follow safety rules and local regulations. This helps you prevent electrical problems and keeps your solar system working well.

Tip: Careful planning makes your solar setup safer and easier.

FAQ

Can you mix different connector types on one solar system?

You can use adapters to connect different types. Always check for tight connections. Use only certified adapters for safety.

How do you know if your connectors are MC4?

Look for a round, black shape with a locking clip. MC4 connectors snap together and feel secure when you push them in.

What happens if connectors do not fit?

You should never force connectors together. Use the correct adapter or ask a professional for help. Forcing can damage your system.
