What size cable for 100w solar panel?

Choosing the right Solar Cable for your 100W solar panel is crucial. A 14 AWG cable works well for short distances, while 10 AWG is better for longer runs. Factors like distance and voltage drop affect your choice. Proper cable sizing ensures safety, reduces power loss, and keeps your solar system running efficiently.

Key Takeaways

• Use a 14 AWG cable for short wires. For longer wires, pick a 10 AWG cable to stay safe and efficient.
• Find voltage drop with this formula: Voltage Drop (V) = (2 × Length × Current × Resistance) ÷ 1000. This helps check if your cable is the right size.
• Look at a wire gauge chart to choose the correct cable. Match the cable size to the distance from your solar panel to the charge controller.

Why the Right Solar Cable Size Matters

Ensuring safety and preventing overheating

Using the correct solar cable size protects your system from overheating. When a cable is too small for the current flowing through it, the wire heats up. This can damage the insulation and even cause a fire. A properly sized cable handles the current safely, keeping your solar setup secure. You should always check the current rating of your cable to ensure it matches the needs of your 100W solar panel.

Maximizing efficiency and reducing power loss

The right solar cable size minimizes power loss. Smaller cables have higher resistance, which leads to energy loss as heat. This reduces the efficiency of your solar panel system. By choosing a cable with the correct gauge, you ensure that more energy reaches your charge controller or battery. This means you get the most out of your solar panel's output.

Avoiding performance issues caused by voltage drop

Voltage drop occurs when electricity travels through a cable over a long distance. If the cable is too thin, the voltage drop becomes significant, affecting the performance of your solar panel system. A thicker cable reduces this drop, ensuring your devices receive the proper voltage. For longer distances, you should opt for a larger cable size to maintain consistent performance.

Tip: Always consider the distance between your solar panel and the charge controller when selecting a cable size. This helps you avoid unnecessary voltage drop and power loss.

Key Factors in Choosing the Correct Solar Cable

Current and voltage of a 100W solar panel

Understanding the current and voltage of your 100W solar panel is essential when selecting the right cable. A typical 100W solar panel operates at around 18 volts and produces about 5.5 amps of current under standard conditions. You need a cable that can handle this current without overheating or losing efficiency. Always check the specifications of your solar panel to confirm its voltage and current ratings. This information helps you choose a solar cable that matches your system's requirements.

Distance between the solar panel and the charge controller

The distance between your solar panel and the charge controller plays a significant role in determining the cable size. Longer distances increase resistance, which can lead to voltage drop and power loss. For short distances, a smaller cable like 14 AWG may suffice. However, for longer runs, you should consider a thicker cable, such as 10 AWG, to minimize energy loss. Measuring the exact distance before purchasing a cable ensures you select the correct size for your setup.

Understanding voltage drop and its impact on performance

Voltage drop occurs when electricity travels through a cable, especially over long distances. If the cable is too thin, the voltage drop becomes more significant, reducing the efficiency of your solar panel system. This can result in less power reaching your charge controller or battery. To avoid this issue, you should calculate the voltage drop for your setup. Using a thicker cable reduces resistance and ensures your system operates at peak performance.

Note: Always prioritize a cable size that minimizes voltage drop, especially for longer distances, to maintain the efficiency of your solar system.

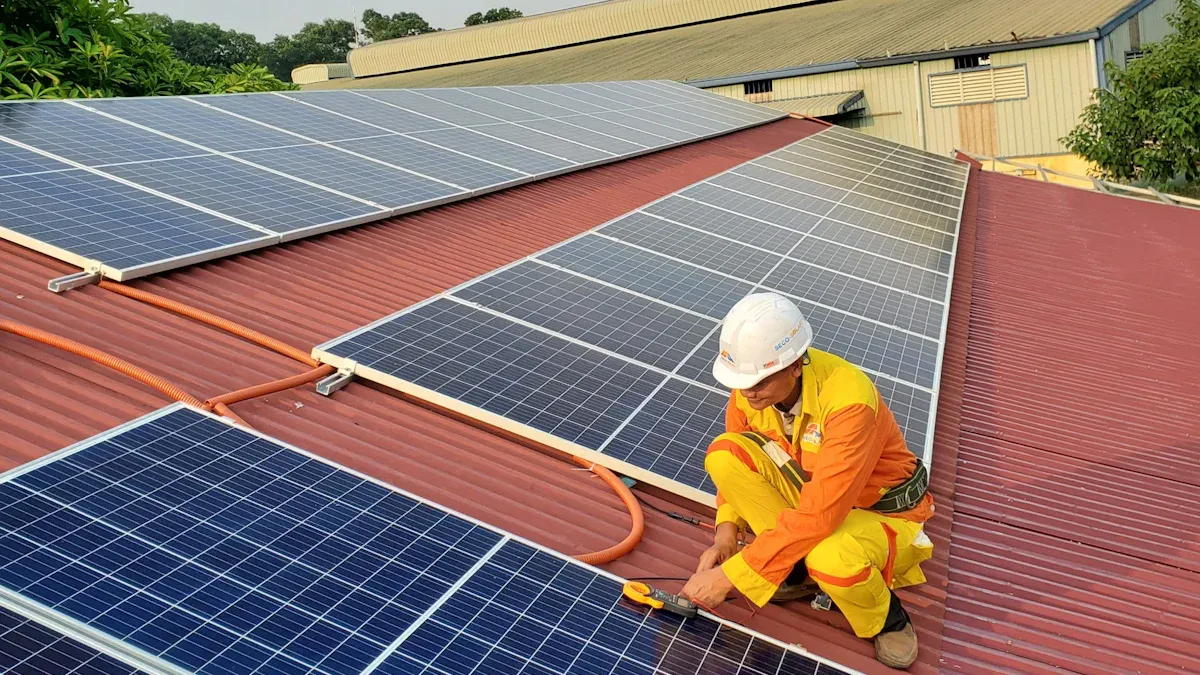

How to Determine the Correct Solar Cable Size

Using a voltage drop formula for calculations

To determine the correct cable size, you can use a voltage drop formula. This formula helps you calculate how much voltage is lost as electricity flows through the cable. The formula is:

Voltage Drop (V) = (2 × Length × Current × Resistance) ÷ 1000

In this formula:

• Length is the distance between your solar panel and the charge controller (in meters).
• Current is the amperage of your solar panel.
• Resistance depends on the cable material and size.

By calculating the voltage drop, you can decide if the cable size is sufficient or if you need a thicker one. A smaller voltage drop ensures better performance for your solar system.

Example calculation for a 100W solar panel setup

Let’s say your 100W solar panel produces 5.5 amps, and the distance to the charge controller is 10 meters. Using a 14 AWG cable with a resistance of 2.5 ohms per kilometer, the voltage drop would be:

Voltage Drop = (2 × 10 × 5.5 × 2.5) ÷ 1000 = 0.275V

This drop is acceptable for most systems. However, if the distance increases, you might need a thicker cable like 10 AWG to reduce the voltage drop further.

Consulting a wire gauge chart for quick reference

A wire gauge chart simplifies the process of choosing the right solar cable. These charts list the recommended cable sizes based on current and distance. For example, a 14 AWG cable works for short distances, while a 10 AWG cable is better for longer runs. Always refer to a reliable chart to ensure your cable size matches your solar panel setup.

Tip: Keep a wire gauge chart handy when planning your solar system. It saves time and ensures accuracy.

Recommendations for Common Solar Panel Setups

Typical configurations for 100W solar panels (e.g., series vs. parallel)

When setting up 100W solar panels, you can connect them in series or parallel. In a series configuration, you connect the positive terminal of one panel to the negative terminal of the next. This setup increases the voltage while keeping the current the same. For example, two 100W panels in series would produce 36 volts and 5.5 amps.

In a parallel configuration, you connect all positive terminals together and all negative terminals together. This setup increases the current while maintaining the same voltage. Two 100W panels in parallel would produce 18 volts and 11 amps. Choose the configuration that matches your system's voltage and current requirements.

Suggested wire gauges for different distances

The distance between your solar panel and the charge controller determines the wire gauge you need. For short distances (up to 10 feet), a 14 Awg Solar Cable works well. For medium distances (10-20 feet), a 12 AWG cable is better. For longer runs (over 20 feet), use a 10 AWG cable to minimize voltage drop.

When to opt for a larger solar cable size

You should choose a larger solar cable size if your setup involves long distances or high current. A thicker cable reduces resistance, which minimizes voltage drop and power loss. If you plan to expand your system in the future, using a larger cable now can save you time and money later. Always prioritize efficiency and safety when selecting your cable size.

Tip: When in doubt, consult a wire gauge chart or a professional to ensure your cable size meets your system's needs.

Choosing the correct solar cable size for your 100W solar panel ensures safety and efficiency. For short distances, use 14 AWG. For longer runs, opt for 10 AWG to reduce voltage drop. Always calculate or consult a wire gauge chart to match your setup. Proper sizing keeps your system running smoothly and reliably.

FAQ

What happens if you use the wrong cable size for a 100W solar panel?

Using the wrong cable size can cause overheating, voltage drop, or power loss. This reduces efficiency and may damage your solar system over time.

Can you use a 12 AWG cable for a 100W solar panel?

Yes, a 12 AWG cable works for medium distances (10-20 feet). It minimizes voltage drop and ensures efficient energy transfer for your solar setup.

How do you calculate the correct cable size for your solar panel?

Use the voltage drop formula:

Voltage Drop (V) = (2 × Length × Current × Resistance) ÷ 1000

This helps you determine if the cable size is sufficient.

Tip: Always consult a wire gauge chart for quick and accurate cable size recommendations.
