What cable is used for solar?

Solar installations demand cables that can handle high voltage, outdoor exposure, and extreme durability. You’ll often encounter PV wire, USE-2 cable, or THHN/THWN wire in these systems. Each Solar Cable type is designed to ensure safety and efficiency, making it essential to choose the right one for your setup.

Key Takeaways

• Pick the right cable for your solar setup. PV wire works for high voltage, USE-2 is good outside, and THHN/THWN fits indoor use.
• Check voltage and current ratings when choosing cables. The right rating stops overheating and keeps things safe.
• Think about the environment before deciding. PV wire handles UV rays and temperature shifts, so it’s great for outdoor use.

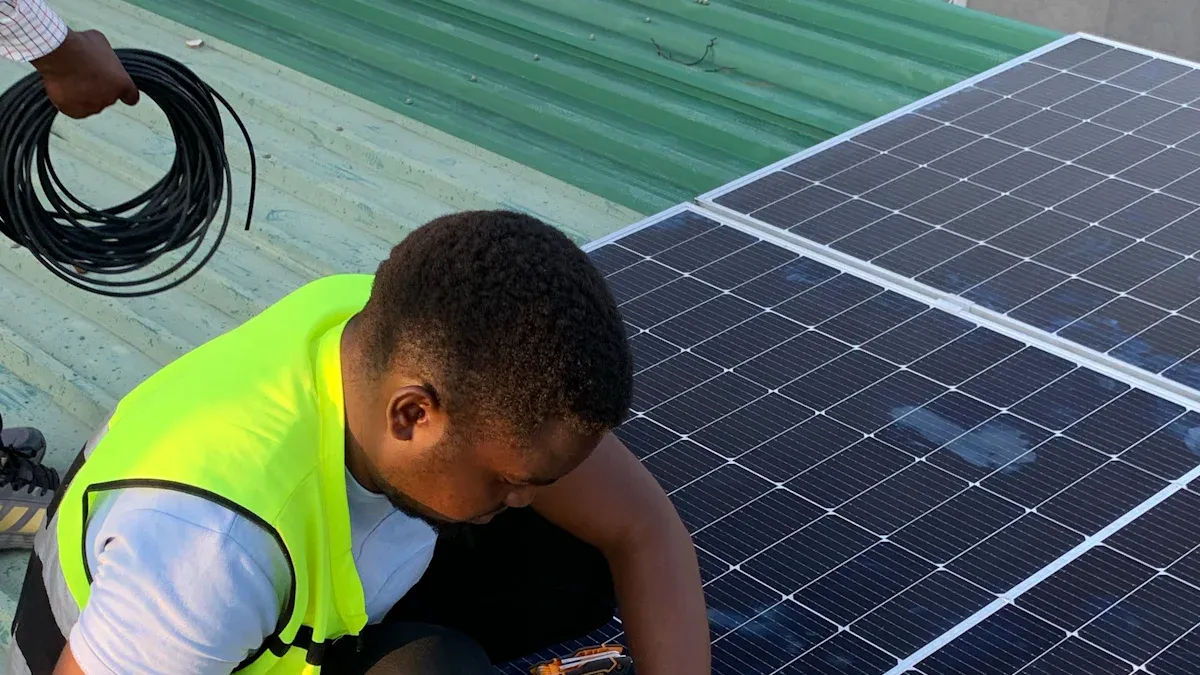

Types of Solar Cables

PV Wire

PV wire, or photovoltaic wire, is a popular choice for solar installations. It is specifically designed to handle the high voltage generated by solar panels. This type of solar cable features thick insulation, which protects it from UV rays, moisture, and extreme temperatures. You can use PV wire for both grounded and ungrounded systems, making it versatile. Its durability ensures long-term performance, even in harsh outdoor conditions.

USE-2 Cable

USE-2 cable, short for Underground Service Entrance cable, is another common option. It is suitable for outdoor use and can withstand direct burial. This cable is resistant to sunlight and moisture, making it ideal for connecting solar panels to inverters or other components. However, USE-2 cable is typically used in grounded systems. If you need a reliable and cost-effective solution, this cable might be the right choice.

THHN/THWN Wire

THHN/THWN wire is a general-purpose cable that can also work in solar installations. It is lightweight and easy to install. While it is not as robust as PV wire or USE-2 cable, it performs well in indoor or protected environments. You can use it for wiring inside junction boxes or conduits. For outdoor use, ensure it is installed in a conduit to protect it from weather exposure.

Choosing the Right Solar Cable

Voltage and Current Ratings

When selecting a solar cable, you need to consider the voltage and current ratings of your solar power system. Each cable type has a specific capacity for handling electrical loads. Using a cable with a lower rating than required can lead to overheating or even fire hazards. For example, PV wire is designed to handle high-voltage systems, making it ideal for large solar installations. Always check the specifications of your system and match them with the cable's ratings to ensure safe and efficient operation.

Insulation and Durability

The insulation of a solar cable plays a critical role in its performance. Outdoor solar installations expose cables to harsh conditions like UV rays, moisture, and temperature fluctuations. Cables like PV wire and USE-2 are built with durable insulation to withstand these challenges. If you plan to use THHN/THWN wire, you must install it in a conduit for added protection. Durable insulation not only extends the cable's lifespan but also prevents electrical failures.

Environmental Conditions

Environmental factors heavily influence your choice of solar cable. If your system is installed in an area with extreme weather, you need cables that can endure those conditions. For instance, PV wire is excellent for outdoor use due to its resistance to UV rays and temperature changes. On the other hand, THHN/THWN wire works better in indoor or protected environments. Always evaluate the climate and installation location before making your decision.

Copper vs. Aluminum Solar Cables

Benefits of Copper Wiring

Copper wiring offers excellent conductivity, making it a top choice for many solar installations. It allows electricity to flow efficiently, reducing energy loss. This feature ensures that your solar power system operates at peak performance. Copper is also highly durable. It resists corrosion and can withstand harsh environmental conditions, such as extreme heat or moisture. This durability makes copper wiring a reliable option for long-term use. Additionally, copper's flexibility simplifies installation, especially in tight spaces or complex setups.

Benefits of Aluminum Wiring

Aluminum wiring provides a cost-effective alternative for solar installations. It is lighter than copper, which makes it easier to handle during installation. This lightweight nature also reduces the overall weight of your solar system, which can be beneficial for certain applications. Aluminum wiring is resistant to oxidation, forming a protective layer that prevents further corrosion. This feature ensures that aluminum wiring remains functional over time, even in challenging environments. If you are looking for an affordable and efficient solution, aluminum wiring might be the right choice.

When to Use Each Material

Choosing between copper and aluminum wiring depends on your specific needs. Copper wiring works best for systems requiring high efficiency and durability. It is ideal for areas with extreme weather or installations that demand long-lasting performance. On the other hand, aluminum wiring suits projects with budget constraints or weight limitations. It is a practical choice for large-scale solar installations where cost savings are a priority. Evaluate your system's requirements and environmental conditions to make the best decision.

Choosing the right solar cable is essential for a safe and efficient solar power system. You should evaluate voltage, insulation, and environmental factors carefully. Using wire sizing charts or consulting a professional ensures your system performs optimally. A well-chosen cable enhances the longevity and reliability of your solar installation.

FAQ

What is the lifespan of solar cables?

Solar cables typically last 25-30 years. Their lifespan depends on the quality of materials and environmental conditions. Regular maintenance ensures they perform efficiently over time.

Can you use regular electrical cables for solar systems?

No, regular cables lack the durability and insulation needed for solar installations. Solar cables, like PV wire, are designed to handle high voltage and outdoor exposure.

How do you determine the correct cable size for your system?

Use a wire sizing chart to match your system's voltage and current requirements. Incorrect sizing can lead to overheating or energy loss. Consult a professional if unsure.

Tip: Always choose cables rated for outdoor use to ensure safety and longevity in solar installations.
