What is the difference between single-core and twin core?

Single-core systems feature a single conductor for transmitting electricity, while twin-core systems use two conductors. This fundamental difference impacts their performance and applications. Choosing between these systems depends on your specific needs. For instance, in a Solar Cable, the right choice ensures optimal efficiency, cost-effectiveness, and ease of installation.

Key Takeaways

• Single-core systems have one wire. They are simple and cheap for basic electricity needs.
• Twin-core systems have two wires. They handle complex setups and reduce messy wiring.
• Use single-core cables for fixed setups. Use twin-core cables for portable systems to make things easier and work better.

What is a Single-Core System?

Definition and Structure

A single-core system uses one conductor to transmit electricity. This conductor is typically made of copper or aluminum, known for their excellent conductivity. Surrounding the conductor is an insulating layer, which protects it from external damage and prevents electrical leakage. The simplicity of this structure makes single-core systems lightweight and easy to handle.

You will often find single-core cables in applications where a single electrical path is sufficient. These cables are straightforward in design, which makes them cost-effective and reliable for basic electrical needs.

Key Characteristics

Single-core systems have several defining features:

• Simplicity: Their design includes only one conductor, making them less complex than twin-core systems.
• Flexibility: These cables are easy to bend and install, especially in tight spaces.
• Cost-Effectiveness: The minimal materials used in their construction reduce their overall cost.
• Durability: High-quality insulation ensures they can withstand environmental factors like heat and moisture.

These characteristics make single-core systems a practical choice for many electrical setups.

Applications in Solar Cables

Single-core cables play a crucial role in solar energy systems. They connect solar panels to inverters or other components, ensuring efficient energy transfer. Their lightweight design simplifies installation, especially in large solar farms.

When you choose a single-core solar cable, you benefit from its durability and ease of use. These cables are ideal for fixed installations where flexibility and cost savings are priorities. For example, they are commonly used in rooftop solar systems and ground-mounted arrays.

Tip: Always check the specifications of a single-core solar cable to ensure it meets your system's voltage and current requirements.

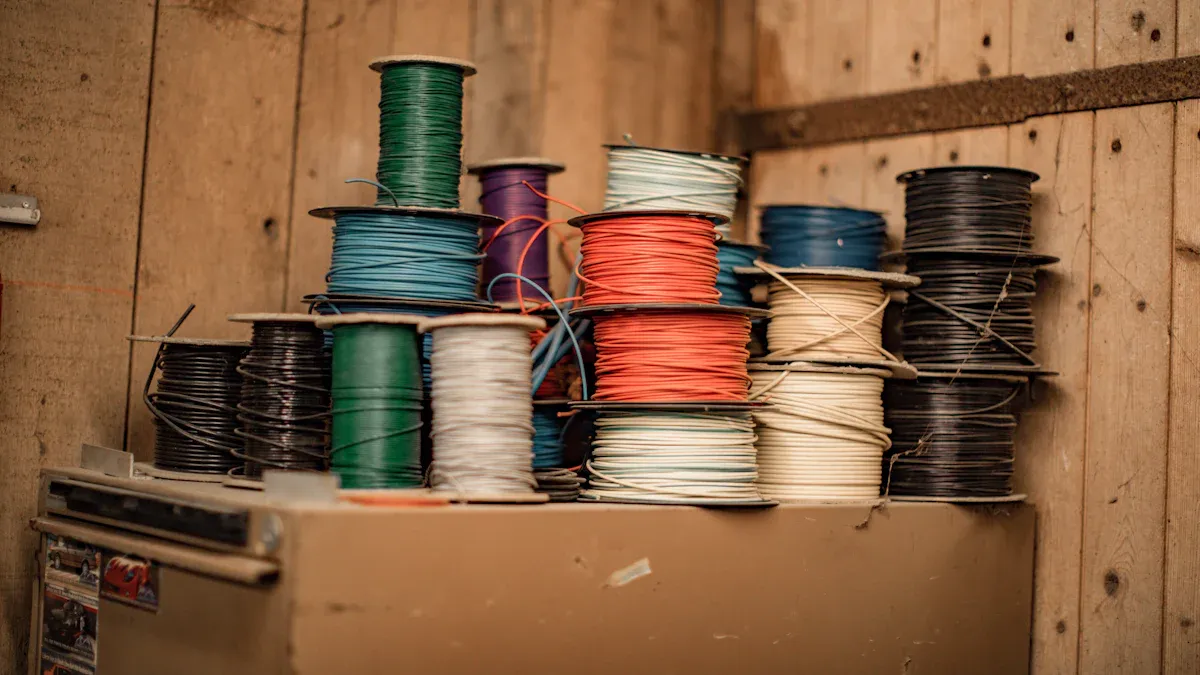

What is a Twin-Core System?

Definition and Structure

A twin-core system uses two conductors within a single cable. These conductors are usually made of copper or aluminum, just like in single-core systems. Each conductor is insulated separately to prevent electrical interference. Both conductors are then encased in an outer protective sheath, which adds durability and shields the cable from environmental damage.

This design allows twin-core systems to carry both live and neutral currents in one cable. It eliminates the need for separate cables, making it a more compact and efficient solution. You will often see twin-core cables in setups where space-saving and streamlined wiring are essential.

Key Characteristics

Twin-core systems have unique features that set them apart:

• Dual Conductors: They carry two electrical paths, which makes them suitable for more complex circuits.
• Compact Design: The two conductors are housed together, reducing the need for multiple cables.
• Enhanced Safety: The separate insulation for each conductor minimizes the risk of short circuits.
• Versatility: These cables can handle both AC and DC currents, making them adaptable to various applications.

These characteristics make twin-core systems a reliable choice for projects requiring efficient and safe electrical connections.

Applications in Solar Cables

Twin-core cables are widely used in solar energy systems. They connect solar panels to inverters and other components, ensuring a smooth flow of electricity. Their compact design simplifies installation, especially in residential and commercial solar setups where space is limited.

When you choose a twin-core solar cable, you gain the advantage of reduced wiring complexity. These cables are ideal for portable solar systems, RVs, and boats, where space and weight are critical factors. They also work well in off-grid solar installations, providing a neat and organized wiring solution.

Tip: Always verify the voltage and current ratings of a twin-core solar cable to ensure compatibility with your solar system.

Single-Core vs. Twin-Core: A Comparative Analysis

Performance and Efficiency

When comparing performance, single-core systems excel in straightforward applications. They deliver reliable energy transfer with minimal resistance. However, twin-core systems offer enhanced efficiency in more complex setups. With two conductors, they can handle both live and neutral currents simultaneously. This dual functionality reduces energy loss and ensures a smoother flow of electricity.

If you prioritize efficiency in a compact design, twin-core systems might be the better choice. On the other hand, single-core systems work well for simpler tasks where high performance isn't critical.

Cost and Affordability

Single-core systems are generally more affordable. Their simple design requires fewer materials, which lowers production costs. Twin-core systems, while more expensive, provide added functionality and safety features.

Your choice depends on your budget and project requirements. If cost is a major factor, single-core systems offer a cost-effective solution. For projects requiring advanced capabilities, the higher price of twin-core systems may be justified.

Installation and Maintenance

Single-core cables are easier to install due to their lightweight and flexible nature. They fit well in tight spaces and require less effort during setup. Twin-core cables, while slightly bulkier, simplify wiring by combining two conductors in one cable. This reduces the need for multiple cables and streamlines installation.

Maintenance for both systems is straightforward. However, twin-core systems may offer better durability due to their protective outer sheath.

Use Cases and Suitability

Single-core systems are ideal for fixed installations like rooftop solar panels or ground-mounted arrays. They provide a reliable and cost-effective solution for basic energy transfer. Twin-core systems shine in portable setups, such as RVs, boats, or off-grid solar installations. Their compact design and dual functionality make them perfect for space-constrained environments.

Tip: Evaluate your project's specific needs before choosing between single-core and twin-core systems. For solar cable applications, consider factors like efficiency, cost, and installation complexity.

Understanding the differences between single-core and twin-core systems helps you make informed decisions. Single-core suits simple, cost-effective setups, while twin-core excels in compact, versatile applications. Evaluate your performance needs, budget, and installation complexity. For solar cables, focus on efficiency and durability to ensure your system operates at its best.

FAQ

What is the main difference between single-core and twin-core cables?

Single-core cables have one conductor, while twin-core cables have two. This difference impacts their functionality, efficiency, and suitability for various applications.

Which cable is better for portable solar systems?

Twin-core cables work better for portable systems. Their compact design and dual conductors make them ideal for space-constrained setups like RVs or boats.

How do I choose the right cable for my solar system?

Evaluate your system's requirements. Consider factors like efficiency, cost, and installation complexity. Single-core suits fixed setups, while twin-core excels in portable or compact environments.

Tip: Always check the voltage and current ratings of the cable to ensure compatibility with your solar system.
