Solar Panel Connectors and Cables

Solar panel connectors and cables are the backbone of any solar power system. They help transfer energy efficiently and safely from your panels to the rest of your setup. Choosing the right solar cable and connectors ensures your system runs reliably. It also protects your investment by enhancing performance and extending its lifespan.

Key Takeaways

• MC4 connectors are widely used in solar systems. They are easy to use, safe, and resist bad weather.
• Pick the right wiring setup—series for more voltage or parallel for more current—to make your solar system work better.
• Use the proper cable size and length to avoid losing energy and keep your solar system safe.

Types of Solar Panel Connectors and Their Uses

Overview of MC4 Connectors

MC4 connectors are the most common type of connector used in solar power systems today. You’ve probably seen them if you’ve ever looked at a solar panel setup. These connectors are designed to make connecting and disconnecting solar panels quick and easy. They’re named "MC4" because they have a "Multi-Contact" design and a 4-millimeter contact pin.

What makes MC4 connectors so popular? They’re weatherproof and durable. They can handle tough outdoor conditions like rain, snow, and extreme heat. Plus, they’re designed to lock securely, which prevents accidental disconnections. This feature ensures that your solar panels stay connected and your system runs smoothly.

Advantages of Using MC4 Connectors

Why should you choose MC4 connectors for your solar setup? Here are some key benefits:

1. Ease of Use: MC4 connectors are plug-and-play. You don’t need special tools to connect them, which makes installation a breeze.
2. Safety: These connectors are designed to prevent accidental shocks. They have built-in safety features like locking mechanisms and insulated pins.
3. Compatibility: MC4 connectors work with most solar panels and solar cables on the market. This makes them a versatile choice for almost any system.
4. Weather Resistance: Their waterproof design ensures they can withstand harsh weather conditions. Whether it’s pouring rain or blazing sun, MC4 connectors keep your system running.

Tip: Always check that your MC4 connectors are properly locked after installation. A secure connection ensures efficient energy transfer and prevents power loss.

Other Types of Solar Panel Connectors (e.g., T4, MC3, TYCO SolarLok)

While MC4 connectors are the most widely used, other types of connectors might suit your needs better. Here’s a quick overview of some alternatives:

• T4 Connectors: These are similar to MC4 connectors but are often used with specific brands of solar panels. They offer the same weatherproof and locking features.
• MC3 Connectors: These are an older version of the MC4 connectors. They’re smaller and less durable, so they’re not as common today. However, you might still find them in older solar systems.
• TYCO SolarLok: These connectors are known for their robust design and ease of use. They’re often used in commercial solar installations.

Each type of connector has its strengths and weaknesses. When choosing a connector, consider factors like compatibility with your solar panels, durability, and ease of installation.

Note: Always pair your connectors with the right solar cable to ensure optimal performance. Using the wrong cable can lead to energy loss or even damage your system.

Wiring Solar Panels: Series vs. Parallel

What Is Series Wiring and When to Use It?

Series wiring connects solar panels in a single line, like a chain. The positive terminal of one panel connects to the negative terminal of the next. This setup increases the voltage while keeping the current the same. For example, if you connect three 12-volt panels in series, the total voltage becomes 36 volts, but the current remains unchanged.

You should use series wiring when your solar system requires higher voltage. Higher voltage can reduce energy loss over long distances, making it ideal for larger setups. It’s also a good choice if your inverter or charge controller needs a specific voltage range to operate efficiently.

Tip: Always check the voltage limit of your inverter or charge controller before wiring panels in series. Exceeding the limit can damage your equipment.

What Is Parallel Wiring and When to Use It?

Parallel wiring connects all the positive terminals of your solar panels together and all the negative terminals together. This setup increases the current while keeping the voltage the same. For instance, if you connect three 12-volt panels in parallel, the voltage remains 12 volts, but the current adds up.

Parallel wiring works best when you need more current to power your devices or charge your batteries faster. It’s also a great option if your solar panels are partially shaded. In a parallel setup, shaded panels won’t affect the performance of the others as much as they would in a series configuration.

Note: Parallel wiring requires thicker solar cables to handle the increased current. Make sure to choose the right cable gauge to avoid overheating.

Step-by-Step Guide to Wiring Solar Panels

Wiring solar panels might seem tricky, but it’s manageable if you follow these steps:

1. Plan Your Setup: Decide whether you’ll wire your panels in series, parallel, or a combination of both. Check your system’s voltage and current requirements.
2. Gather Your Tools: You’ll need connectors (like MC4), a solar cable, a multimeter, and possibly a crimping tool.
3. Position Your Panels: Arrange your panels where they’ll get the most sunlight. Secure them in place before starting the wiring process.
4. Connect the Panels: For series wiring, connect the positive terminal of one panel to the negative terminal of the next. For parallel wiring, connect all positive terminals together and all negative terminals together.
5. Test the Connections: Use a multimeter to check the voltage and current of your setup. Make sure everything matches your system’s requirements.
6. Connect to the Inverter or Charge Controller: Once you’ve tested the connections, link your panels to the rest of your system.

Safety Reminder: Always turn off your system before making any connections. Working with live wires can be dangerous.

Tools and Equipment Needed for Wiring

Before you start wiring, gather these essential tools and materials:

• MC4 Connectors: These make connecting and disconnecting panels easy and secure.
• Solar Cable: Choose a cable with the right length and gauge for your setup. Thicker cables are better for parallel wiring due to higher current.
• Multimeter: Use this to measure voltage and current during installation.
• Crimping Tool: This helps you attach connectors to your cables.
• Safety Gear: Gloves and safety glasses protect you while working with electrical components.

Having the right tools ensures a smooth installation process and reduces the risk of errors. It also helps you create a safe and efficient solar power system.

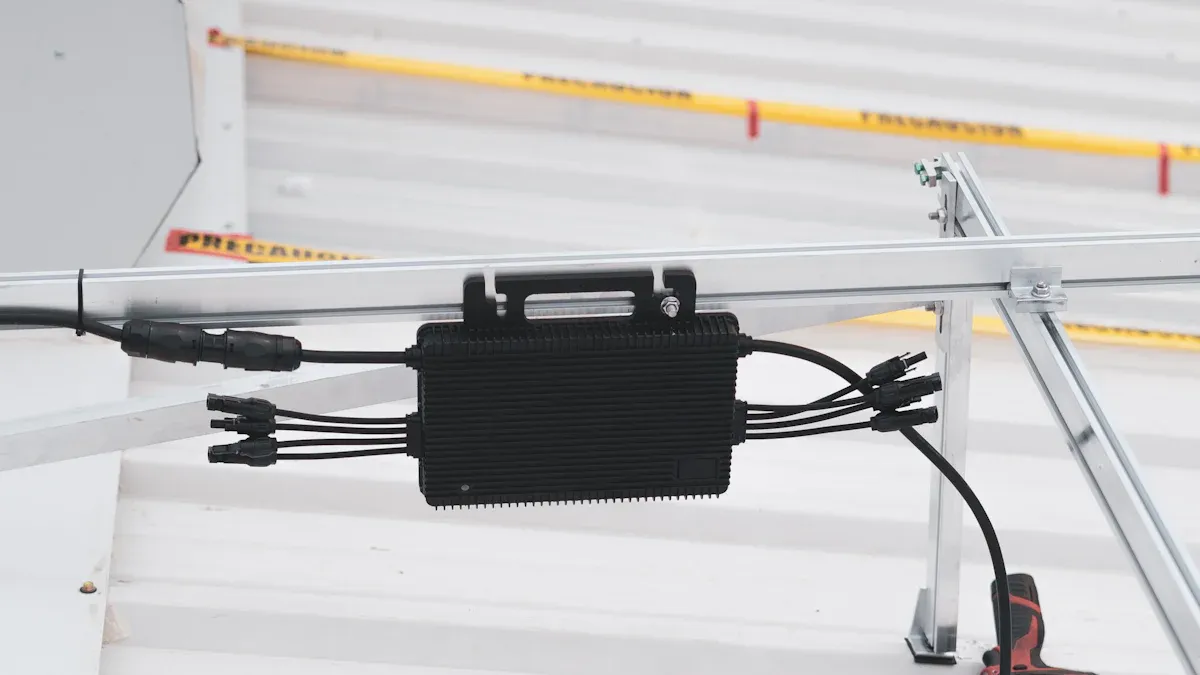

MC4 Extension Cables and Choosing the Right Solar Cable

What Are MC4 Extension Cables?

MC4 extension cables are specialized wires designed to extend the reach of your solar panel connections. They come with pre-attached MC4 connectors on both ends, making them easy to plug into your existing setup. These cables are perfect when your solar panels are far from your inverter or charge controller. They help bridge the gap without compromising energy transfer.

You’ll find MC4 extension cables in various lengths and thicknesses. This flexibility allows you to customize your system based on your specific needs. Whether you’re setting up panels on a roof or in a large yard, these cables ensure a seamless connection.

How to Choose the Right Cable Length and Gauge

Picking the right solar cable length and gauge is crucial for efficiency. A cable that’s too short won’t reach your components, while one that’s too long can lead to energy loss. Measure the distance between your panels and the rest of your system before buying.

Gauge refers to the thickness of the cable. Thicker cables (lower gauge numbers) handle higher currents better and reduce energy loss. For longer distances or parallel wiring, opt for a thicker cable to maintain performance.

Tip: Always check the specifications of your solar panels and system to match the cable’s capacity.

Examples of Common Use Cases

MC4 extension cables are versatile. Here are some common scenarios where they come in handy:

• Roof Installations: When panels are mounted far from the inverter.
• Ground-Mounted Systems: To connect panels spread across a large area.
• Temporary Setups: For portable solar kits used during camping or outdoor events.

These cables adapt to various setups, making them a must-have for solar enthusiasts.

Tips for Disconnecting and Building MC4 Cables

Disconnecting MC4 cables is simple but requires care. Use an MC4 disconnect tool to unlock the connectors without damaging them. Avoid pulling on the cable itself, as this can weaken the connection.

If you’re building your own cables, invest in a quality crimping tool. Strip the cable ends, attach the MC4 connectors, and crimp them securely. Test the connection with a multimeter to ensure it’s working correctly.

Safety Reminder: Always turn off your system before working on the cables to avoid electrical hazards.

Choosing the right connectors and cables is key to a reliable solar system. High-quality components and proper wiring ensure your setup runs safely and efficiently. 🌞 Durable, weather-resistant materials protect your investment for years.

Don’t cut corners—invest in the best. Your solar system deserves it, and so do you!

FAQ

What happens if I use the wrong cable gauge?

Using the wrong gauge can cause overheating or energy loss. Always match the cable’s thickness to your system’s voltage and current requirements for safe and efficient performance.

Can I mix different types of solar connectors?

No, mixing connectors like MC4 and T4 can lead to poor connections or energy loss. Stick to one type for compatibility and reliability.

How do I protect my solar cables from weather damage?

Use weather-resistant cables and secure them with UV-protected cable ties. Keep them off the ground to avoid water exposure and physical damage. 🌦️

Tip: Regularly inspect your cables for wear and tear to ensure long-term reliability.
