how many MC4 connectors are needed per solar power panel

When setting up a solar panel, you’ll need two MC4 connectors—one male and one female. These small but essential components link your panel to the rest of the system. Depending on your setup, the number of Solar Power Cable connectors might change, but they’re always crucial for a safe and efficient connection.

Key Takeaways

• Every solar panel usually needs one male and one female MC4 connector to connect safely.
• Installing them correctly is important; hear a 'click' to know they are locked.
• Check and clean MC4 connectors often to keep them working well and avoid harm.

Understanding Solar Power Cable Connectors

What Are MC4 Connectors?

MC4 connectors are small but mighty components that play a big role in solar panel systems. You’ve probably seen them if you’ve ever looked closely at a solar panel. These connectors are designed to make connecting and disconnecting solar panels quick and easy. They come in two types: male and female. Each type has a specific role in creating a secure and weatherproof connection.

The name "MC4" stands for "Multi-Contact, 4 millimeters," which refers to the diameter of the metal pin inside the connector. This design ensures a snug fit and reliable performance. You’ll find these connectors on most modern solar panels because they’re standardized across the industry. They’re also built to handle high voltage and current, making them perfect for solar power systems.

Why Are MC4 Connectors Essential for Solar Panels?

You might wonder why these connectors are so important. Well, they’re the key to linking your solar panels to the rest of your system. Without them, you wouldn’t be able to transfer the electricity your panels generate. MC4 connectors ensure a stable and efficient connection, which is critical for getting the most out of your solar setup.

Another reason they’re essential is safety. These connectors are designed to prevent accidental disconnections and protect against water and dust. This keeps your system running smoothly and reduces the risk of damage. Plus, they make it easier to expand or modify your system later. Whether you’re adding more panels or replacing old ones, MC4 connectors simplify the process.

Tip: Always double-check that your connectors are properly secured. A loose connection can lead to energy loss or even system failure.

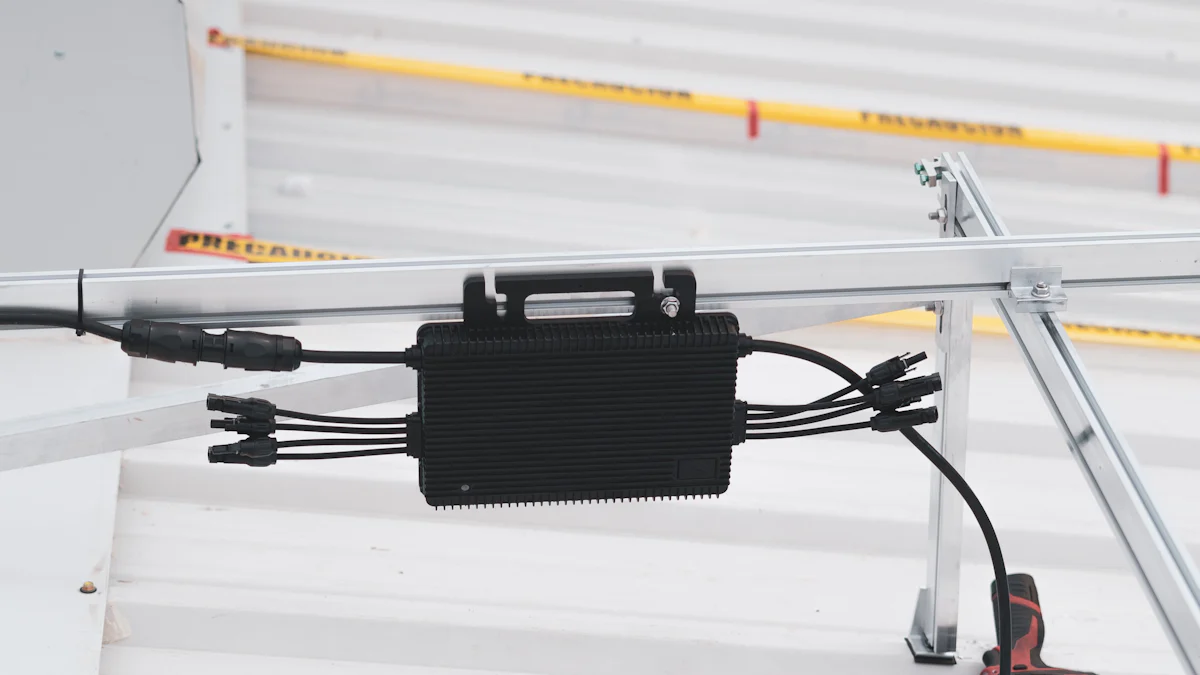

Determining the Number of MC4 Connectors Per Solar Panel

Standard Requirement: One Male and One Female Connector

For most solar panels, you’ll need one male and one female MC4 connector. These connectors are already attached to the panel’s cables when you buy it. The male connector handles the positive current, while the female connector manages the negative. Together, they create a secure and efficient link to your solar power system. This standard setup works for most residential and commercial installations. If you’re just starting out, this is the configuration you’ll likely use.

Variations for Series Configurations

When you connect solar panels in a series, the wiring changes slightly. In this setup, the positive cable of one panel connects to the negative cable of the next. This creates a chain that increases the voltage of your system. You’ll still use the male and female connectors on each panel, but you won’t need extra connectors for the in-between connections. The last panel in the series will have one unused male connector and one unused female connector. These will link to the rest of your system.

Variations for Parallel Configurations

Parallel configurations work differently. Here, all the positive cables connect to a single positive terminal, and all the negative cables connect to a single negative terminal. You’ll need additional solar power cable connectors, like branch connectors, to combine the cables. These branch connectors allow multiple male or female MC4 connectors to join together. This setup keeps the voltage the same but increases the current, which can be useful for certain systems.

Note: Always check your system’s requirements before deciding on a configuration. Using the wrong setup can affect performance or even damage your equipment.

Factors Influencing the Number of Solar Power Cable Connectors

Solar Panel Specifications

The type and size of your solar panels can affect how many connectors you’ll need. Some panels come with pre-attached cables and connectors, while others require you to add them yourself. Larger panels might have thicker cables, which could require specific types of connectors. If your panels are designed for high voltage or current, you’ll need connectors that can handle those demands. Always check the specifications of your panels before purchasing connectors. This ensures compatibility and prevents any issues during installation.

System Design and Layout

How you design your solar power system plays a big role in determining the number of connectors. If your panels are spread out over a large area, you might need extension cables and additional connectors to bridge the gaps. On the other hand, a compact system with closely placed panels may require fewer connectors. The layout of your system also matters. For example, if you’re using a mix of series and parallel configurations, you’ll need to account for the connectors required for each setup.

Additional Components in the System

Your system might include extra components like inverters, charge controllers, or combiner boxes. These components often require additional connectors to link them to the panels. For instance, if you’re using a combiner box, you’ll need connectors to bring multiple panel cables together. Similarly, connecting to an inverter might require adapters or specialized connectors. Always plan for these extra components when calculating the total number of connectors you’ll need.

Tip: Keep a few spare connectors on hand. They’re useful for quick replacements or unexpected changes to your system.

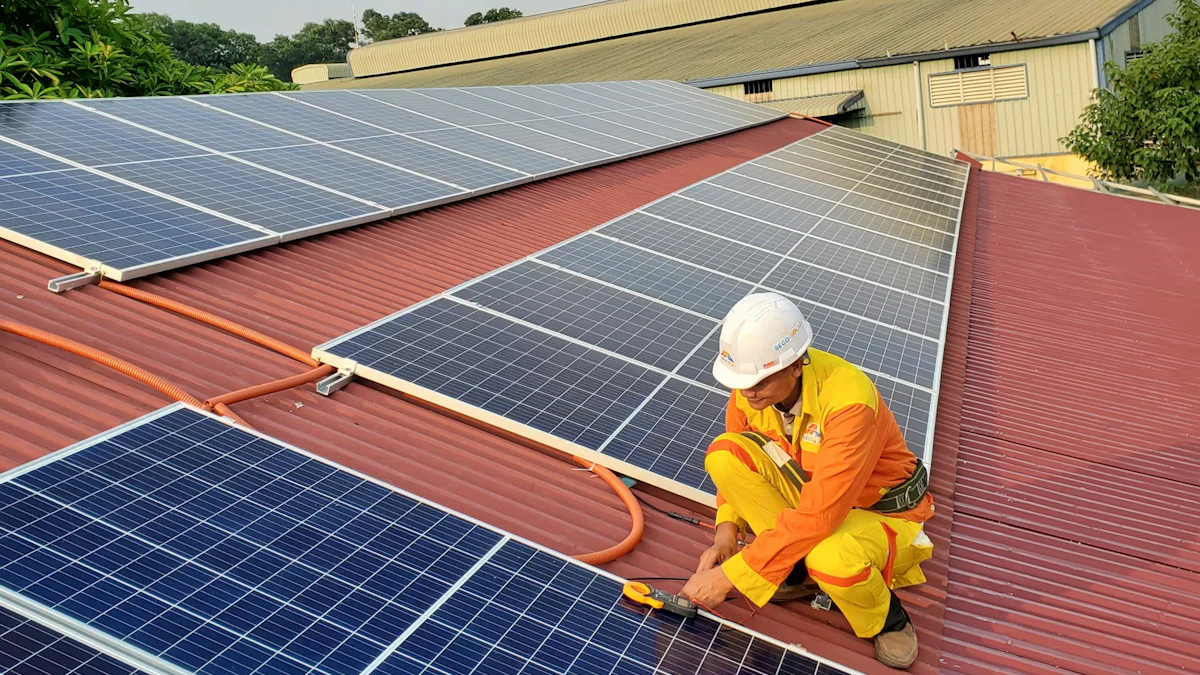

Best Practices for Installing and Maintaining MC4 Connectors

Ensuring Proper Connections

Getting the connections right is the first step to a reliable solar power system. When you’re installing MC4 connectors, make sure they click securely into place. That “click” sound means the connection is locked and won’t come loose. Double-check the polarity too. The male connector should always link to the positive cable, and the female connector should connect to the negative. Mixing them up can cause serious issues, like system failure or even damage to your equipment.

If you’re using multiple solar power cable connectors, label them. This makes it easier to identify each connection later. A little effort upfront can save you a lot of time and frustration down the road.

Regular Inspection and Maintenance

Even the best connections need a little TLC. Inspect your MC4 connectors regularly to keep your system running smoothly. Look for signs of wear, like cracks or discoloration. These could mean the connector isn’t sealing properly, which might let water or dust in. If you spot any damage, replace the connector immediately.

Clean the connectors occasionally too. Dust and debris can build up over time, especially if your panels are outdoors. A soft brush or a clean cloth works well for this. Keeping the connectors clean helps maintain a strong and efficient connection.

Avoiding Common Installation Mistakes

Some mistakes are easy to avoid if you know what to watch for. One common issue is not stripping the cable properly before attaching the connector. If the wire isn’t exposed enough, the connection won’t be secure. Use a wire stripper to get it just right.

Another mistake is skipping the waterproofing step. MC4 connectors are designed to be weatherproof, but only if they’re installed correctly. Make sure the rubber seals are in place and tightened properly. This keeps moisture out and protects your system from damage.

Pro Tip: Always use connectors that match your system’s specifications. Using the wrong type can lead to inefficiency or even safety hazards.

Most solar panels need two MC4 connectors: one male and one female. Your system’s design might change this number slightly. Always prioritize proper installation to avoid issues. Regular maintenance keeps your setup efficient and safe. Remember, a well-maintained connection ensures your solar power system runs smoothly for years. 🌞

FAQ

How do you know if an MC4 connector is properly connected?

Listen for a distinct "click" when connecting. This sound confirms the connector is securely locked. Always double-check the connection to ensure it’s tight and stable.

Can you reuse MC4 connectors after disconnecting them?

Yes, you can reuse them if they’re undamaged. Inspect for wear or cracks before reusing. Damaged connectors should be replaced to maintain safety and efficiency.

Do MC4 connectors work with all solar panels?

Most modern solar panels use MC4 connectors. However, always check your panel’s specifications to confirm compatibility. Some older or specialized panels may require different connectors.
