Off-Grid Solar Systems: How to Select DC Cables for Efficiency?

Proper DC cable selection is essential for your off-grid solar system. Your cable choice directly affects both system efficiency and safety. Make informed decisions to ensure a reliable, long-lasting off-grid power supply. Selecting the correct Off-grid PV DC Cable guarantees optimal performance.

Key Takeaways

• Choose the right DC cable size for your off-grid solar system. This prevents energy loss and keeps your system safe.
• Use copper cables. They work better than aluminum cables. Copper cables make your system more efficient.
• Protect your cables from weather. Use UV-resistant cables and conduits. This makes them last longer.

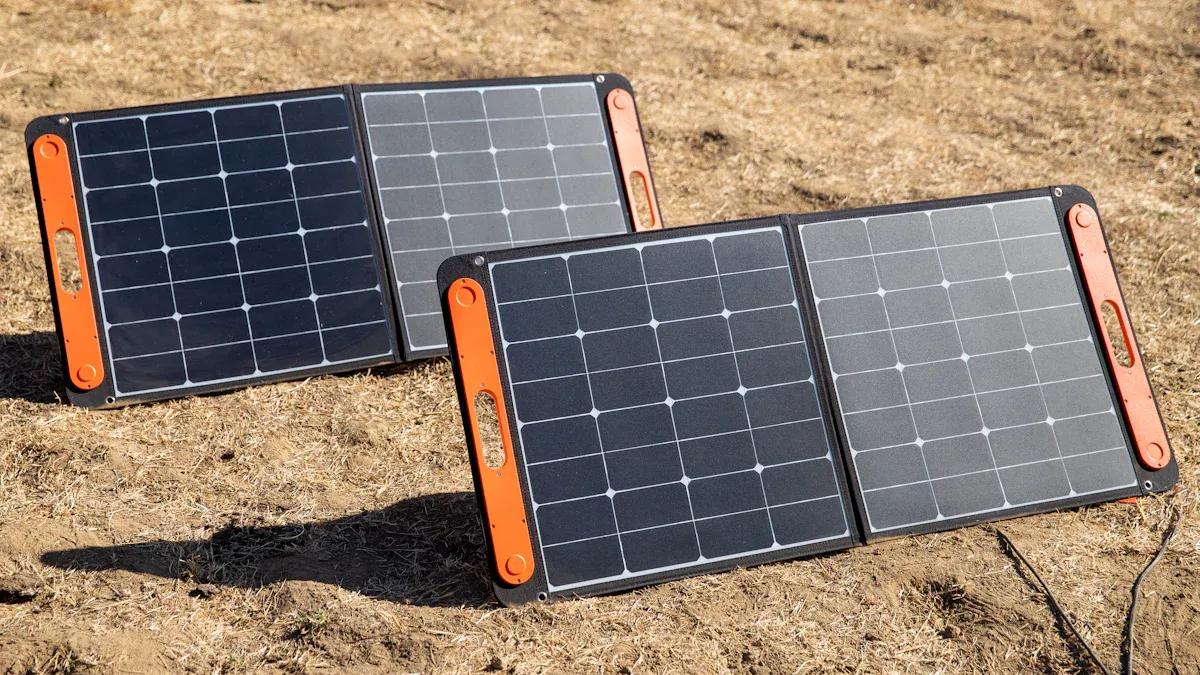

Fundamental Considerations for Off-grid PV DC Cable Selection

Understanding Current Capacity Requirements

You must select cables that safely handle your system's electrical current. Current capacity refers to the maximum amount of electrical current a cable can carry without overheating. If you choose a cable that is too small for the current, it will get hot. This heat wastes energy and creates a serious fire hazard. You need to determine the maximum current your solar system will produce. Look at the maximum output current from your solar panels. Also, check the maximum input current for your charge controller or inverter. Always choose a cable with an ampacity rating higher than your system's peak current. This ensures safety and efficient operation for your off-grid PV DC cable.

Calculating Allowable Voltage Drop

Voltage drop is another critical factor. It occurs when electricity travels through a cable. The voltage at the end of the cable becomes lower than at the beginning. This loss reduces the power available to your appliances. It makes your system less efficient. You want to minimize voltage drop. A common guideline is to keep voltage drop below 3% for your entire system. For very sensitive loads, aim for less than 1%. Longer cables and higher currents cause more voltage drop. Thicker cables, which have lower gauge numbers, reduce voltage drop. You can use online calculators or specific formulas to determine the correct cable size for an acceptable voltage drop.

Environmental Durability and Protection

Your off-grid PV DC cable will face harsh outdoor conditions. Sunlight, rain, extreme temperatures, and even pests can damage it. You need cables specifically designed for these challenges. Look for insulation materials that resist UV radiation. This prevents the sun from degrading the cable's outer layer over time. The cable must also withstand the temperature extremes of your location. It should be waterproof or highly water-resistant to prevent moisture damage. Some cables feature special jackets for direct burial underground. Using conduit provides extra physical protection against animals and accidental damage. This ensures your cables remain reliable and last for many years outdoors.

Optimizing Efficiency Through Cable Specifications

Conductor Material and Conductivity

The material inside your cable greatly affects how well your solar system works. You typically choose between copper and aluminum for cable conductors. Copper is the best choice for off-grid solar systems. It has higher conductivity than aluminum. This means copper allows electricity to flow more easily. When electricity flows easily, you lose less energy as heat. This makes your system more efficient. Aluminum cables are lighter and cheaper. However, they have higher resistance. This higher resistance leads to more voltage drop and energy loss. For critical applications like your off-grid power, you want the best performance. Therefore, you should always choose copper conductors for your Off-grid PV DC cable.

Precise Cable Sizing Calculations

Choosing the right cable size is not a guess. You must perform precise calculations. An undersized cable causes significant energy loss and can overheat. An oversized cable costs more money and is harder to install. You need to consider three main factors for accurate sizing:

• Current (Amps): This is the amount of electricity flowing through the cable. You find this from your solar panels and inverter specifications.
• Distance (Feet/Meters): This is the one-way length of the cable run from your panels to your charge controller or inverter. Longer distances need thicker cables.
• Allowable Voltage Drop (%): You decide how much voltage loss you can accept. As discussed earlier, aim for less than 3%.

You can use specific formulas or online calculators to find the exact wire gauge. These tools help you match your system's needs to the correct cable size. This ensures maximum power delivery to your batteries and appliances.

Minimizing Cable Length and Connections

You can significantly improve your system's efficiency by keeping cable runs short. Every foot of cable adds resistance. This resistance causes voltage drop and energy loss. Plan your system layout carefully. Place your solar panels, charge controller, and battery bank as close as possible. This reduces the distance electricity travels.

💡 Tip: A well-planned layout can save you money on cable costs and boost your system's performance.

Also, minimize the number of connections in your DC wiring. Each connection point introduces some resistance. It also creates a potential point of failure. Use high-quality connectors. Make sure all connections are secure and tight. Loose connections can cause resistance, heat, and even sparks. Fewer, well-made connections mean a more reliable and efficient system.

Ensuring Safety and Compliance in DC Cable Selection

Insulation Type and UV Resistance

You need cables with strong insulation. This insulation protects the conductors inside. It also prevents electrical shorts. For outdoor use, choose insulation that resists UV radiation. Sunlight can break down standard insulation over time. This makes the cable brittle. It exposes the wires. UV-resistant insulation ensures your Off-grid PV DC cable remains safe and functional for many years. Look for cables rated for direct sunlight exposure. This prevents premature cable failure.

Adherence to Electrical Codes and Standards

Always follow local and national electrical codes. These codes ensure your system is safe. They prevent fire hazards and electrical shocks. In the United States, you must follow the National Electrical Code (NEC). The NEC has specific rules for solar installations. It covers cable types, sizing, and installation methods. Following these standards protects you and your property. It also ensures your system passes inspections. Compliance is not optional for a safe off-grid setup.

Practical Tips for Cable Selection and Installation

When selecting cables, always double-check all ratings. Match the cable to your system's voltage and current. Consider the environment where you install the cables. Use appropriate connectors and tools. Make sure all connections are tight and secure. Loose connections create resistance and heat. Label your cables clearly. This helps with future maintenance or troubleshooting. Protect your Off-grid PV DC cable runs with conduit where possible. If you are unsure, consult a qualified solar installer. They can help you choose the right cables and install them safely and correctly.

You now see the critical role of careful DC cable selection. It directly impacts your off-grid system's efficiency and safety. Always prioritize quality and precise sizing. This ensures a reliable, long-lasting power supply for your home. Make smart choices for optimal performance.

FAQ

Why choose copper cables for off-grid solar?

Copper offers superior conductivity. It reduces energy loss and voltage drop. This makes your system more efficient and reliable.

What is an acceptable voltage drop for my system?

Aim for less than 3% voltage drop across your entire system. For sensitive electronics, keep it under 1%. This ensures optimal power delivery.

How do I protect my cables from the environment?

Use UV-resistant cables. Install them in conduit for physical protection. This shields them from sun, rain, and pests.
