Choosing the Right DC Cable Size for Your Solar System

Choosing the right DC cable size ensures your solar system operates safely and efficiently. Incorrect sizing can lead to energy loss, overheating, or even system failure. A poorly selected solar cable may compromise performance and pose safety risks. Proper cable selection protects your investment and ensures long-term reliability.

Key Takeaways

• Picking the right DC cable size is very important. It keeps your solar system safe and working well. Correct size stops overheating and energy waste.
• Check your solar cables often for damage or wear. This keeps your system running well and avoids expensive fixes.
• Use online tools or math formulas to find the right cable size. Base it on current, voltage, and cable length. This keeps your system safe and efficient.

Why Proper DC Cable Sizing Matters

System Efficiency and Performance

The size of your solar cable directly affects how well your solar system performs. A properly sized cable ensures that electricity flows smoothly from your solar panels to the rest of your system. When the cable is too small, it creates resistance, which slows down the flow of electricity. This can reduce the overall efficiency of your system. On the other hand, using the correct cable size helps you maximize the energy your solar panels produce. This means you get the most out of your investment while keeping your system running at its best.

Safety and Fire Prevention

Choosing the right cable size is not just about performance; it’s also about safety. Undersized cables can overheat when carrying more current than they are designed for. Overheating increases the risk of electrical fires, which can damage your property and put lives at risk. By selecting the correct solar cable, you reduce the chances of overheating and ensure your system operates safely. Always prioritize safety when designing your solar setup.

Minimizing Voltage Drop and Energy Loss

Voltage drop happens when electricity travels through a cable and loses some of its power along the way. Longer cables or cables that are too small can cause significant voltage drops. This results in energy loss, which means your solar system becomes less efficient. To minimize voltage drop, you need to choose a cable size that matches the length of the cable and the amount of current it will carry. Proper cable sizing helps you avoid wasting energy and keeps your system running efficiently.

Key Factors Influencing Solar Cable Size

Current Capacity and Ampacity

The current capacity, also known as ampacity, determines how much electrical current a cable can safely carry. If you choose a solar cable with insufficient ampacity, it may overheat and fail. To avoid this, you need to match the cable’s ampacity with the maximum current your solar system generates. Manufacturers often provide ampacity ratings for their cables, so always check these specifications before making a decision.

Voltage Drop Considerations

Voltage drop occurs when electricity loses power as it travels through a cable. This can reduce the efficiency of your solar system. To minimize voltage drop, you should select a solar cable with the right thickness. Thicker cables have lower resistance, which helps maintain voltage levels. If your system has long cable runs, paying attention to voltage drop becomes even more critical.

Cable Length and Resistance

The length of your cable directly affects its resistance. Longer cables create more resistance, which can lead to energy loss. To counter this, you may need to use a thicker cable for longer distances. Always measure the distance between your solar panels and the rest of your system to determine the appropriate cable size. This ensures your system operates efficiently without unnecessary energy loss.

System Voltage and Power Output

Your system’s voltage and power output also play a role in selecting the right cable. Higher voltage systems typically require cables with higher insulation ratings. Similarly, the power output of your solar system determines the amount of current flowing through the cable. By considering both factors, you can choose a solar cable that supports your system’s performance and safety.

How to Calculate the Correct Solar Cable Size

Cable Sizing Formula Overview

To calculate the correct size for your solar cable, you need to use a simple formula. This formula considers the current, voltage, cable length, and acceptable voltage drop. The basic formula is:

Cable Size (mm²) = (2 × Current × Cable Length × Resistance per Meter) ÷ Voltage Drop

The "Resistance per Meter" depends on the material of the cable, such as copper or aluminum. The "Voltage Drop" is usually a small percentage of your system voltage, often 2-3%. This formula helps you determine the minimum cable size needed for safe and efficient operation.

Step-by-Step Calculation Example

Let’s say your solar system generates 20 amps of current, and the cable length is 10 meters (one way). You are using copper cables, and the acceptable voltage drop is 2% of a 12V system.

1. Calculate the total voltage drop:

   Voltage Drop = 12V × 2% = 0.24V

2. Find the resistance per meter for copper (e.g., 0.017 ohms for 1mm²).
3. Use the formula:

   Cable Size = (2 × 20 × 10 × 0.017) ÷ 0.24 = 14.17 mm²

You would round up to the nearest standard size, such as 16 mm².

Using Online Tools for Cable Sizing

If manual calculations seem complex, online tools can simplify the process. These tools allow you to input your system details, such as current, voltage, and cable length. They then calculate the recommended solar cable size for you. Many websites and apps offer free calculators, making it easier to ensure your system is safe and efficient.

Practical Considerations for Solar Cable Selection

Copper vs. Aluminum Cables

When choosing a solar cable, you’ll often decide between copper and aluminum. Copper cables are more conductive, which means they carry electricity more efficiently. They also have better flexibility, making them easier to install in tight spaces. However, copper cables are more expensive than aluminum. Aluminum cables, on the other hand, are lighter and more affordable. They work well for longer distances but may require a larger size to match the conductivity of copper. Consider your budget, system requirements, and installation needs when deciding between the two.

Insulation Types and Durability

The insulation on your solar cable protects it from damage and ensures safety. Common insulation materials include PVC and XLPE. PVC is cost-effective and works well in moderate conditions. XLPE, however, offers better durability and can withstand higher temperatures. If your solar system is exposed to harsh weather, choose a cable with UV-resistant and weatherproof insulation. This ensures your cables last longer and perform reliably.

Environmental Factors (e.g., temperature, UV exposure)

Your environment plays a big role in cable selection. High temperatures can cause cables to overheat, while UV exposure can degrade insulation over time. If your solar system is installed outdoors, look for cables designed to handle extreme weather. For example, cables with UV-resistant insulation are ideal for sunny climates. Always match the cable’s specifications to the conditions it will face.

Compliance with Electrical Codes

Electrical codes ensure your solar system meets safety standards. These codes specify the minimum requirements for cable size, insulation, and installation. Following these guidelines reduces the risk of accidents and ensures your system operates safely. Before purchasing a solar cable, check local regulations and confirm that the cable meets all necessary standards. Compliance not only protects your system but also ensures legal approval for your installation.

Best Practices for Solar Cable Installation and Maintenance

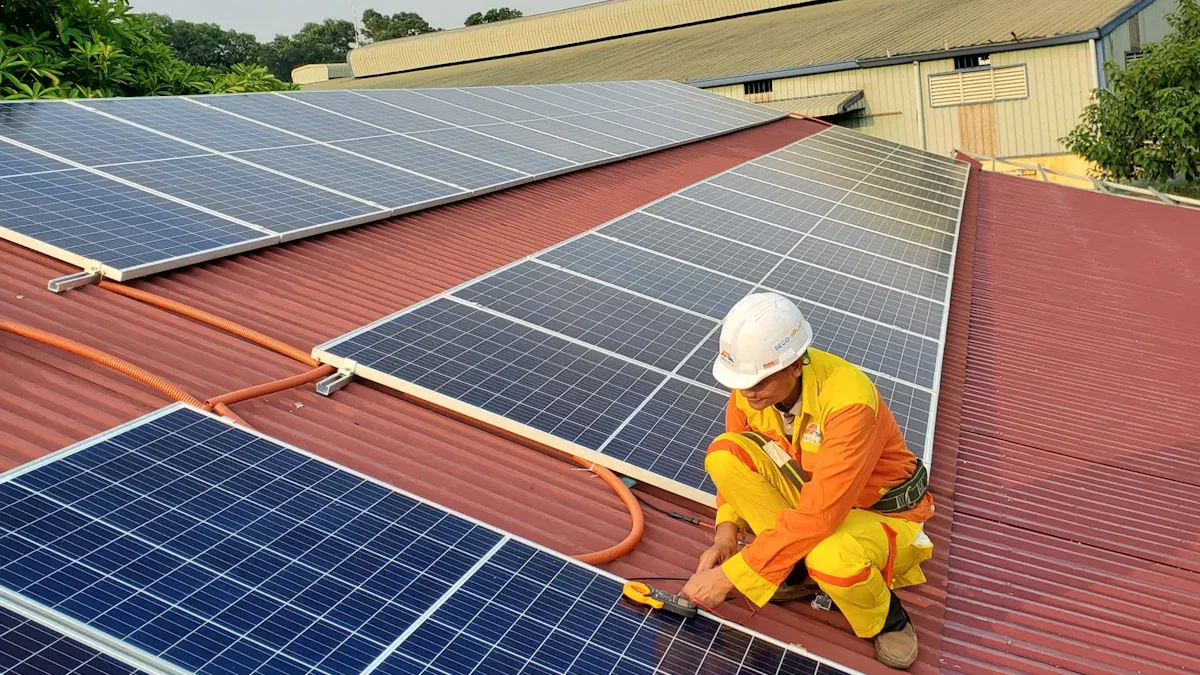

Proper Cable Routing and Protection

Routing your solar cables correctly ensures safety and efficiency. Avoid sharp bends or tight loops, as these can damage the cable over time. Use cable clips or ties to secure the cables and prevent them from moving or sagging. Keep the cables away from areas where they might be stepped on or exposed to physical damage.

Protect your cables from environmental hazards. For outdoor installations, use conduits or cable trays to shield the cables from UV rays, rain, and debris. If the cables run underground, choose a protective casing to prevent moisture or pests from causing harm. Proper routing and protection extend the lifespan of your cables and reduce the risk of system failure.

Regular Inspection and Maintenance

Inspect your solar cables regularly to identify potential issues early. Look for signs of wear, such as cracks in the insulation or discoloration. Check for loose connections or corrosion at the terminals. Addressing these problems promptly prevents larger issues from developing.

Schedule routine maintenance to ensure your system operates at peak performance. Clean the cables and connectors to remove dirt or debris that might affect conductivity. Regular inspections and maintenance keep your solar system safe and efficient.

Avoiding Common Installation Mistakes

Mistakes during installation can lead to costly repairs or safety hazards. Avoid using cables that are too short, as this can strain the connections. Ensure all connections are tight and secure to prevent energy loss or overheating.

Double-check the cable size before installation. Using an undersized cable can cause voltage drops or overheating. Follow the manufacturer’s guidelines and local electrical codes to avoid errors. Taking these precautions ensures a smooth and trouble-free installation.

---

Proper DC cable sizing ensures your solar system operates safely and efficiently. It minimizes energy loss, prevents overheating, and extends the system’s lifespan.

⚡ Tip: Always prioritize correct cable sizing to protect your investment and avoid costly issues.

If you feel unsure, consult a professional for guidance.

FAQ

What happens if you use an undersized DC cable?

An undersized cable can overheat, cause voltage drops, and reduce system efficiency. It may also pose safety risks, including electrical fires.

How often should you inspect solar cables?

Inspect your solar cables every 6-12 months. Look for wear, loose connections, or damage to ensure your system operates safely and efficiently.

Can you mix copper and aluminum cables in one system?

Avoid mixing copper and aluminum cables. Their different properties can cause corrosion at connection points, leading to energy loss and potential safety hazards.

💡 Tip: Always consult a professional if you're unsure about cable selection or installation.
