Connectors 1000V for Power Lines: A Simple Guide

Connectors 1000V for power lines of photovoltaic power stations play a critical role in solar energy systems. These connectors ensure efficient and reliable transmission of electricity generated by solar panels. They serve as the backbone of photovoltaic installations, enabling seamless integration between components. By maintaining stable connections, they minimize energy loss and enhance system performance. Their robust design withstands harsh environmental conditions, making them indispensable for both residential and commercial solar projects. Without these connectors, achieving optimal energy output and long-term system reliability would be challenging.

Key Takeaways

• Connectors 1000V are essential for efficient energy transmission in photovoltaic systems, minimizing energy loss and enhancing overall performance.
• These connectors are designed to withstand harsh environmental conditions, ensuring long-term reliability in both residential and commercial solar projects.
• Proper installation is crucial; using the right tools and following a step-by-step process can prevent common errors that compromise system efficiency.
• Regular inspection and maintenance of connectors help identify issues early, extending their lifespan and ensuring the reliability of the solar energy system.
• Choosing certified connectors that meet industry standards is vital for safety, performance, and compliance with regulations, reducing risks associated with solar installations.
• Compatibility with various solar components is key; always verify specifications to ensure seamless integration and optimal energy output.

Understanding Connectors 1000V for Power Lines of Photovoltaic Power Stations

Definition and Purpose

Connectors 1000V for power lines of photovoltaic power stations serve as essential components in solar energy systems. These connectors establish secure electrical connections between solar panels, inverters, and other system elements.

The primary purpose of these connectors is to facilitate the seamless flow of electricity generated by solar panels. They minimize energy loss during transmission, which directly impacts the efficiency of the system. Additionally, their robust construction protects against environmental factors such as UV radiation, moisture, and temperature fluctuations. This ensures that the connectors remain functional even under harsh conditions, safeguarding the integrity of the solar energy system.

Applications in Residential and Commercial Solar Projects

Connectors 1000V for power lines of photovoltaic power stations find applications in both residential and commercial solar installations. In residential projects, these connectors enable homeowners to harness solar energy efficiently. They connect solar panels to inverters and other components, ensuring a stable energy supply for household needs. Their compact design allows for easy installation, even in limited spaces, making them ideal for rooftop solar systems.

In commercial settings, these connectors support large-scale solar projects. Businesses rely on them to maintain consistent energy output across extensive photovoltaic arrays.

These connectors also play a crucial role in hybrid systems that combine solar energy with other power sources. Their versatility allows them to adapt to different configurations, ensuring reliable performance in diverse applications. Whether for small-scale residential use or expansive commercial projects, these connectors provide the flexibility and reliability needed to meet energy demands effectively.

Key Technical Specifications of Connectors 1000V for Power Lines

Voltage and Current Ratings (DC 1000V, 30A)

Connectors 1000V for power lines of photovoltaic power stations are designed to handle high electrical loads efficiently.

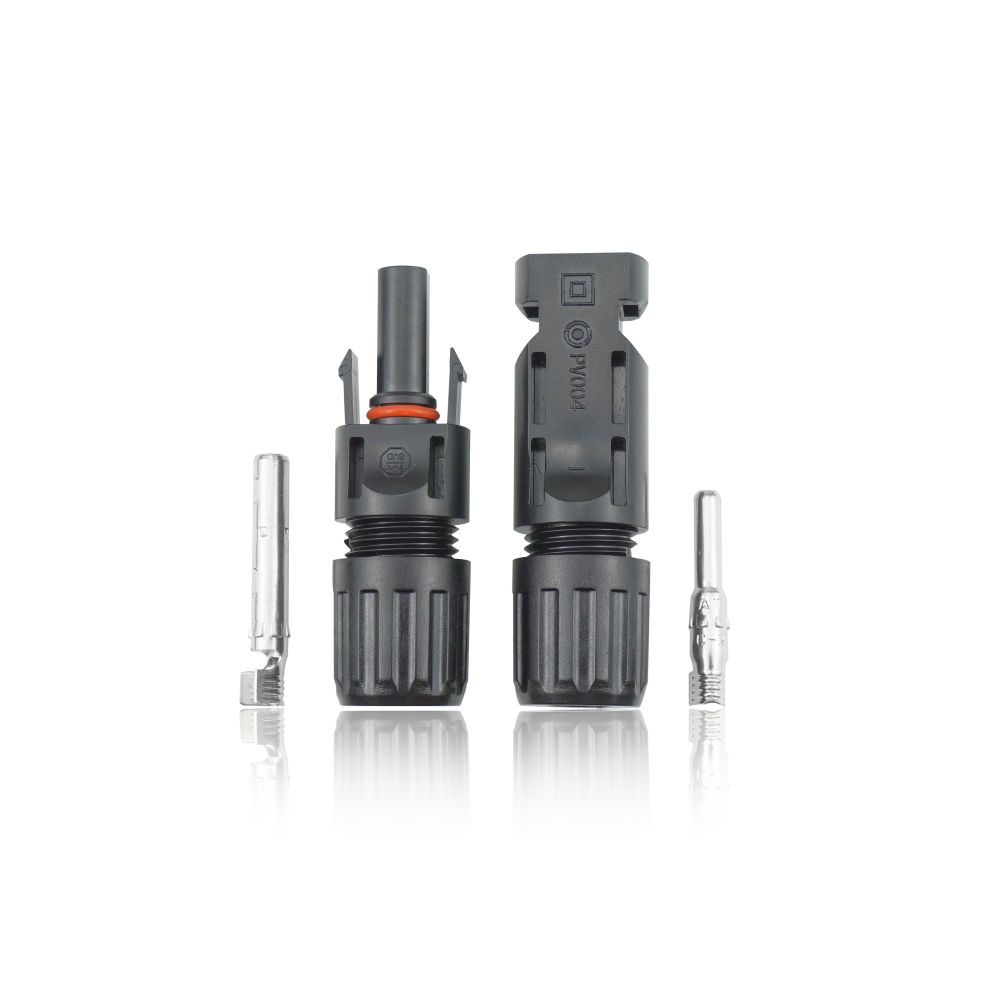

Material Composition: PC EXL9330C and Tinned Copper Core

The inner core features thickened tinned copper, which enhances electrical conductivity and minimizes power loss.

Environmental Resistance: Fire Retardant, UV, and Corrosion Resistance

Environmental factors can significantly impact the performance of solar energy systems. These connectors are engineered to withstand challenging conditions. Their fire-retardant properties enhance safety by reducing the risk of electrical fires. UV resistance protects the connectors from prolonged sun exposure, preventing material degradation over time. Corrosion resistance ensures that the connectors remain unaffected by moisture or chemical exposure, making them ideal for outdoor installations. This level of environmental resistance guarantees reliable performance, even in regions with extreme weather conditions.

Protection Ratings: IP65/IP67 for Harsh Conditions

Connectors designed for photovoltaic power stations must endure challenging environments. The IP65 and IP67 protection ratings ensure these connectors perform reliably under harsh conditions. These ratings indicate the level of protection against dust and water, which are common threats in outdoor solar installations.

The IP65 rating guarantees complete protection against dust infiltration. Dust can compromise electrical connections and reduce system efficiency. By preventing dust entry, these connectors maintain stable performance over time. The IP65 rating also ensures resistance to water jets from any direction, making the connectors suitable for areas with occasional rain or cleaning requirements.

The IP67 rating offers an even higher level of protection. It ensures the connectors remain functional even when temporarily submerged in water up to one meter deep for 30 minutes. This feature is crucial for installations in regions prone to heavy rainfall or flooding. The ability to withstand such conditions enhances the reliability of solar energy systems in diverse environments.

These protection ratings make the connectors ideal for outdoor use. They safeguard the electrical components from environmental damage, ensuring long-term durability. By choosing connectors with IP65 and IP67 ratings, users can trust their photovoltaic systems to operate efficiently, regardless of weather conditions.

Compatibility with Photovoltaic Systems

Connector Types and System Integration

Connectors play a vital role in ensuring the smooth operation of photovoltaic systems.

System integration depends on the compatibility of connectors with other components.

Ensuring Seamless Fit with Solar Cables

A secure fit between connectors and Solar Cables is essential for reliable energy transmission. Connectors must match the diameter and insulation type of the cables used in the system. A mismatch can lead to loose connections, energy loss, or even electrical hazards. Installers should verify the specifications of both connectors and cables before installation.

High-quality connectors feature ergonomic designs that allow for easy attachment to solar cables. Many connectors include snap-on mechanisms that ensure a tight and stable connection. This design minimizes the risk of accidental disconnections during operation. Properly fitted connectors maintain consistent energy flow, which is critical for the efficiency of photovoltaic systems.

Regular inspection of connections helps identify potential issues. Dust, moisture, or wear can affect the fit between connectors and cables. Cleaning and maintenance ensure that the connectors remain functional and continue to provide a seamless fit. This practice extends the lifespan of the system and prevents unexpected downtime.

Addressing Common Compatibility Challenges

Compatibility challenges can arise during the installation or operation of photovoltaic systems. One common issue involves mismatched connectors and cables. Using connectors that do not align with the system's specifications can lead to inefficiencies or failures. Installers should always refer to the manufacturer's guidelines to avoid such problems.

Another challenge involves integrating connectors into existing systems. Older systems may use outdated components that are incompatible with modern connectors. In such cases, adapters or replacement parts may be necessary to achieve compatibility. Careful planning and consultation with experts can help address these challenges effectively.

Environmental factors can also impact compatibility. Connectors exposed to extreme conditions may degrade over time, affecting their performance. Choosing connectors with robust environmental resistance ensures they remain compatible with the system despite harsh weather. Regular maintenance further mitigates these risks and preserves system reliability.

By addressing these challenges proactively, users can ensure that their photovoltaic systems operate efficiently. Proper compatibility between connectors, cables, and other components enhances energy output and supports the long-term success of solar installations.

Safety Standards and Certifications for 1000V Connectors

Industry Standards: IEC, UL, and More

Connectors 1000V for power lines of photovoltaic power stations must meet strict industry standards to ensure safety and reliability.

These certifications provide assurance to users, ensuring that the connectors meet the highest safety and performance criteria.

Built-in Safety Features: Watertight and Dust-Proof Seals

Safety features play a critical role in the design of connectors for photovoltaic systems. Watertight seals protect the internal components from moisture, which can cause short circuits or corrosion. These seals maintain their integrity even in heavy rain or high-humidity environments, ensuring uninterrupted energy transmission.

Dust-proof seals prevent particles from entering the connectors. Dust accumulation can disrupt electrical connections and reduce efficiency. By blocking dust infiltration, these seals enhance the durability and reliability of the connectors. Together, these features safeguard the connectors against environmental damage, making them suitable for outdoor installations in diverse climates.

Importance of Certified Connectors for Risk Mitigation

Certified connectors reduce risks associated with solar energy systems. Non-certified products may fail under high voltage or harsh conditions, leading to system malfunctions or safety hazards. Certified connectors undergo extensive testing to ensure they meet stringent safety standards. This testing verifies their ability to perform reliably in demanding environments.

Using certified connectors minimizes the risk of electrical fires, energy loss, and system downtime. Installers and users can trust these products to deliver consistent performance over time. Certification also simplifies compliance with local regulations, reducing potential legal or financial liabilities. Choosing certified connectors ensures a safer and more efficient photovoltaic system.

Installation Guidelines for Connectors 1000V for Power Lines

Tools and Equipment Required

Proper installation of connectors requires specific tools and equipment to ensure secure and efficient connections.

• Wire Strippers: Essential for removing insulation from solar cables without damaging the conductive core.
• Crimping Tool: Used to attach the connector securely to the cable, ensuring a stable electrical connection.
• Multimeter: Helps verify the continuity and voltage of the connection after installation.
• Screwdrivers: Necessary for tightening or adjusting components during the installation process.
• Protective Gloves: Provide safety when handling electrical components and prevent accidental injuries.

Having these tools ready ensures a smooth and error-free installation process. Each tool plays a critical role in achieving a reliable connection that supports the performance of photovoltaic systems.

Step-by-Step Installation Process

Installing connectors 1000V for power lines of photovoltaic power stations involves a systematic approach. Following these steps ensures a secure and efficient connection:

1. Prepare the Cable: Use wire strippers to remove approximately 10-12 mm of insulation from the end of the solar cable. Ensure the copper core remains intact and undamaged.
2. Insert the Cable: Slide the stripped end of the cable into the connector housing. Align the cable properly to avoid misalignment during crimping.
3. Crimp the Connection: Use a crimping tool to attach the connector pin to the cable. Apply firm pressure to create a secure bond between the pin and the copper core.

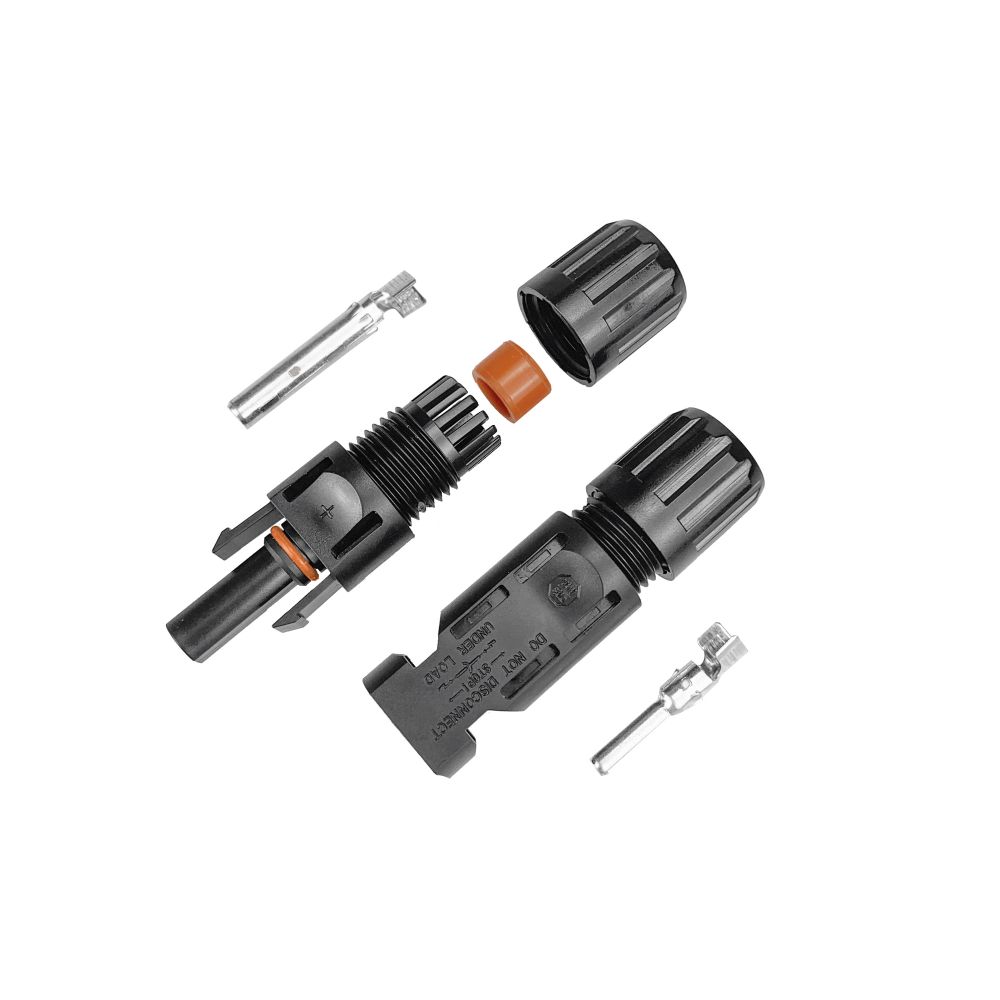

4. Assemble the Connector: Insert the crimped pin into the connector housing until it clicks into place. This step ensures the pin is locked securely within the housing.
5. Seal the Connection: Tighten the sealing nut on the connector to secure the cable and provide a watertight seal. This step protects the connection from environmental factors like moisture and dust.
6. Test the Connection: Use a multimeter to check the continuity and voltage of the connection. Verify that the connector is functioning correctly before proceeding with the installation.

By following these steps, installers can achieve a reliable and durable connection that supports the efficient operation of photovoltaic systems.

Snap-On Locking Mechanism for Secure Connections

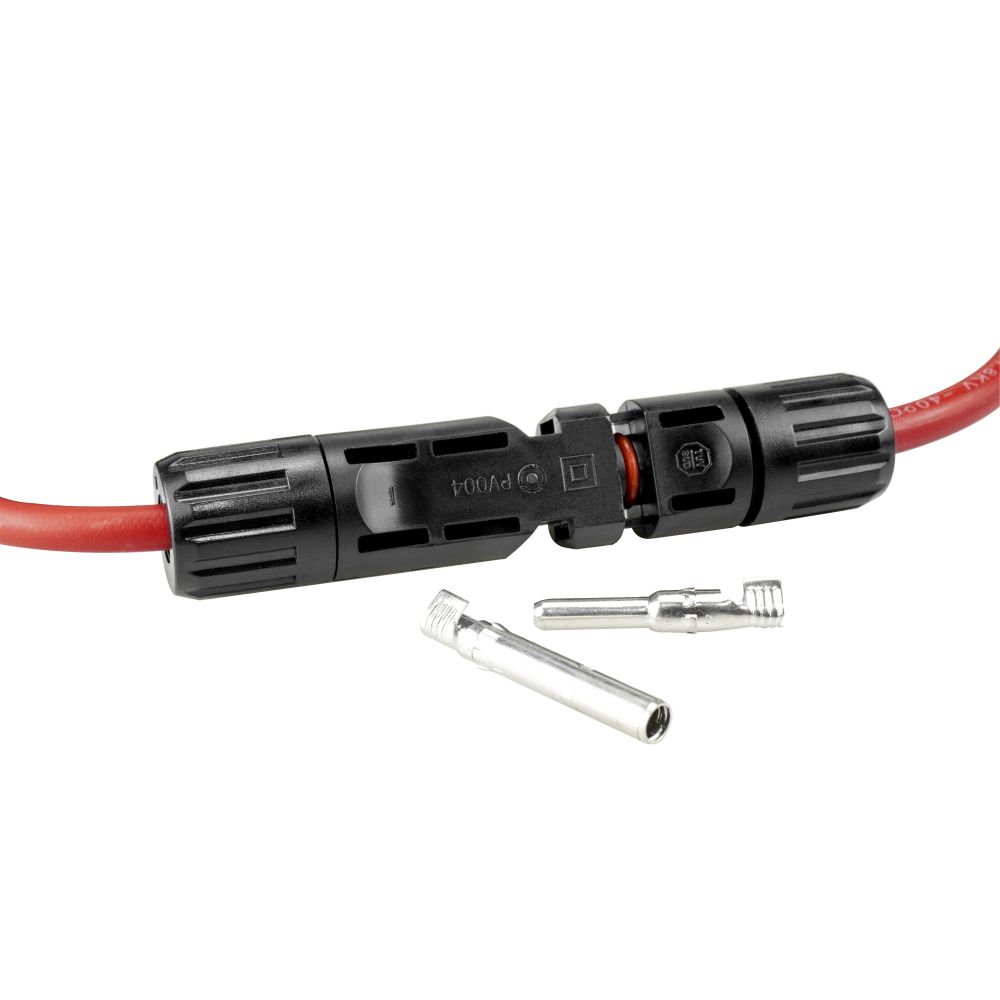

The snap-on locking mechanism is a key feature of these connectors. It simplifies the installation process while ensuring a secure and stable connection. This mechanism allows the connector to lock into place with minimal effort, reducing the risk of accidental disconnections during operation.

To engage the snap-on locking mechanism, align the male and female connectors and push them together until a clicking sound confirms the connection. This design eliminates the need for additional tools, making the process quick and user-friendly. The locking mechanism also enhances safety by preventing loose connections, which can lead to energy loss or electrical hazards.

Regular inspection of the locking mechanism ensures its continued functionality. Dust or debris may affect its performance over time, so cleaning the connectors periodically helps maintain their reliability. This feature provides peace of mind to users, knowing that their photovoltaic systems operate with secure and stable connections.

Avoiding Common Installation Errors

Proper installation of Connectors 1000V for power lines ensures the efficiency and safety of photovoltaic systems.

1. Incorrect Cable Stripping

Improper cable stripping often results in damaged copper cores or insufficient insulation removal. Damaged cores reduce conductivity, while excess insulation prevents secure connections. Installers should use high-quality wire strippers and remove only the recommended length of insulation, typically 10-12 mm. Ensuring the copper core remains intact is essential for optimal energy transfer.

2. Loose Crimping

Loose crimping weakens the connection between the connector pin and the cable. This issue can cause energy loss or overheating, which may lead to system failure. Installers should use a calibrated crimping tool to apply firm and even pressure. A properly crimped connection should feel secure and show no signs of movement when tugged gently.

3. Misaligned Connector Assembly

Misalignment during connector assembly creates unstable connections. This instability increases the risk of accidental disconnections or electrical hazards. Installers must align the connector pin with the housing precisely before locking it into place. Listening for the "click" sound ensures the pin is securely positioned within the housing.

4. Overtightening or Undertightening Sealing Nuts

Sealing nuts play a critical role in protecting connections from environmental factors. Overtightening can damage the connector housing, while undertightening leaves gaps that allow moisture or dust to enter. Installers should tighten the sealing nut until it feels snug but avoid applying excessive force. Regular checks during maintenance help ensure the nut remains secure over time.

5. Skipping Continuity Testing

Failing to test the connection after installation can result in undetected issues. Problems such as loose connections or faulty components may go unnoticed until they cause system malfunctions. Installers should always use a multimeter to verify continuity and voltage. Testing ensures the connection functions correctly before proceeding with the installation.

6. Ignoring Environmental Factors

Environmental conditions, such as extreme temperatures or high humidity, can affect connector performance. Installers should select connectors with appropriate protection ratings, such as IP65 or IP67, for the installation environment. Additionally, they must ensure all seals are intact to prevent environmental damage.

7. Using Incompatible Components

Incompatible connectors and cables lead to poor system integration and reduced efficiency. Installers should verify that all components meet the system's technical specifications. Consulting the manufacturer's guidelines helps avoid compatibility issues and ensures seamless integration.

8. Neglecting Regular Maintenance

Even after proper installation, neglecting maintenance can lead to long-term issues. Dust, debris, or wear may compromise connections over time. Regular inspection and cleaning help maintain the connectors' functionality and extend their lifespan.

"Attention to detail during installation prevents costly errors and ensures the long-term success of photovoltaic systems."

By addressing these common errors, installers can achieve reliable and efficient connections. Following these guidelines enhances the performance and durability of solar energy systems, ensuring they operate at their full potential.

Maintenance and Troubleshooting Tips for 1000V Connectors

Regular Inspection and Cleaning Practices

Maintaining the performance of 1000V connectors requires consistent inspection and cleaning. Solar energy systems operate in outdoor environments, exposing connectors to dust, moisture, and debris. These elements can compromise the efficiency and safety of the system if left unchecked.

To ensure optimal functionality, users should inspect connectors at least once every six months. During inspections, they should look for visible signs of wear, such as cracks, discoloration, or loose connections. Identifying these issues early prevents further damage and reduces the risk of system failure.

Cleaning connectors is equally important. Dust and dirt can accumulate on the surface and inside the connectors, disrupting electrical conductivity. A soft, dry cloth works well for removing surface debris. For stubborn dirt, users can apply a small amount of isopropyl alcohol to the cloth. Avoid using water or abrasive materials, as these can damage the connector's protective seals.

"Regular maintenance not only extends the lifespan of connectors but also ensures the reliability of the entire photovoltaic system."

Identifying and Resolving Common Issues

Even with proper maintenance, connectors may encounter issues over time. Identifying and addressing these problems promptly ensures uninterrupted system performance. Below are some common issues and their solutions:

• Loose Connections: Loose connections can result in energy loss or overheating. Users should check the tightness of all connections during inspections. Re-crimping or resealing may be necessary to restore stability.

• Corrosion: Exposure to moisture can lead to corrosion, especially in areas with high humidity. Corroded connectors should be cleaned with a corrosion remover or replaced if the damage is severe.

• Cracked Housing: Cracks in the connector housing compromise its environmental resistance. Replace any connectors with visible cracks to maintain system integrity.

• Overheating: Overheating often indicates a poor connection or excessive current flow. Users should verify the compatibility of the connectors with the system's specifications and ensure proper installation.

By addressing these issues promptly, users can prevent minor problems from escalating into costly repairs.

When and How to Replace Connectors

Replacing connectors becomes necessary when they show signs of significant wear or damage. Indicators for replacement include persistent overheating, severe corrosion, or physical damage that compromises functionality. Using damaged connectors can lead to energy loss, safety hazards, or system downtime.

To replace a connector, follow these steps:

1. Disconnect Power: Turn off the power supply to the photovoltaic system to ensure safety during the replacement process.
2. Remove the Damaged Connector: Use a screwdriver or appropriate tool to detach the damaged connector from the cable. Avoid pulling or twisting the cable forcefully.
3. Prepare the Cable: Strip the insulation from the cable end, exposing the copper core. Ensure the stripped length matches the specifications of the new connector.
4. Attach the New Connector: Insert the cable into the new connector housing and crimp it securely. Assemble the connector and tighten the sealing nut to create a watertight seal.
5. Test the Connection: Use a multimeter to verify the continuity and voltage of the new connection. Ensure the connector functions correctly before restoring power.

Replacing connectors promptly ensures the photovoltaic system continues to operate efficiently and safely. Users should always choose certified connectors that meet industry standards for reliability and performance.

---

Choosing high-quality connectors ensures the efficiency and safety of photovoltaic systems. Products like Pntech Photovoltaic Connectors offer reliable performance through advanced technical specifications, seamless compatibility, and robust safety features. Their ease of installation simplifies the process for both residential and commercial projects. Prioritizing certified, durable, and dependable connectors guarantees long-term system reliability. Users should invest in connectors 1000V for power lines of photovoltaic power stations to maximize energy output and protect their solar installations from potential risks.

FAQ

What are Connectors 1000V for power lines used for?

Connectors 1000V for power lines connect various components in photovoltaic systems, such as solar panels, inverters, and cables.

---

Are these connectors compatible with all solar panels?

Most connectors 1000V for power lines are designed to meet industry standards, ensuring compatibility with a wide range of solar panels. However, users should verify the specifications of the connectors and solar panels to ensure proper integration. Consulting the manufacturer's guidelines helps avoid compatibility issues.

---

How do I know if a connector is certified?

Certified connectors typically display labels or markings indicating compliance with industry standards, such as IEC or UL certifications. These certifications confirm that the connectors have undergone rigorous testing for safety and performance. Users should always choose certified products to ensure reliability.

---

Can these connectors withstand extreme weather conditions?

Yes, connectors 1000V for power lines are engineered to endure harsh environmental conditions. Features like fire retardancy, UV resistance, and corrosion resistance protect them from damage caused by extreme temperatures, sunlight, and moisture. Protection ratings such as IP65 and IP67 further enhance their durability in outdoor installations.

---

What tools are required for installing these connectors?

Installing these connectors requires specific tools, including wire strippers, crimping tools, multimeters, and screwdrivers. Protective gloves are also recommended for safety. These tools ensure secure connections and help maintain the efficiency of the photovoltaic system.

---

How often should connectors be inspected and maintained?

Regular inspections should occur at least every six months. During inspections, users should check for signs of wear, such as cracks, discoloration, or loose connections. Cleaning the connectors with a soft cloth or isopropyl alcohol helps maintain their functionality and extends their lifespan.

---

What should I do if a connector overheats?

Overheating often indicates a poor connection or excessive current flow. Users should inspect the connector for loose connections or damage. Replacing the connector or verifying its compatibility with the system's specifications can resolve the issue. If the problem persists, consulting a professional is advisable.

---

Can damaged connectors be repaired, or should they be replaced?

Damaged connectors, especially those with severe corrosion, cracks, or overheating issues, should be replaced. Repairing connectors may compromise their safety and performance. Replacing them with certified, high-quality connectors ensures the system operates efficiently and safely.

---

Are these connectors suitable for large-scale solar projects?

Yes, connectors 1000V for power lines are ideal for large-scale solar installations. Their high voltage and current ratings support the demands of extensive photovoltaic arrays. Their compatibility with various solar cables simplifies integration, making them a reliable choice for commercial projects.

---

Why is it important to use certified connectors?

Certified connectors meet stringent safety and performance standards, reducing risks such as electrical fires, energy loss, and system malfunctions. They ensure reliable operation under demanding conditions and simplify compliance with local regulations. Choosing certified connectors enhances the overall safety and efficiency of photovoltaic systems.
