How the T-Type Connector Simplifies Solar Installations

The T-type connector revolutionizes solar installations by addressing common challenges. The T-type connector eliminates concerns about complex setups or inefficient systems. This innovative tool simplifies connections, ensuring improved energy flow and enhanced reliability. Its durable design is built to endure harsh conditions, making the T-type connector a dependable choice for long-term use. With the T-type connector, solar installations become more user-friendly and efficient.

Key Takeaways

• The T-type connector makes solar setups easier by linking panels simply.
• Its strong build and waterproof seals work well in bad weather.
• The T-type connector saves time and money, great for pros and DIYers.

The T-Type Connector: Features and Design

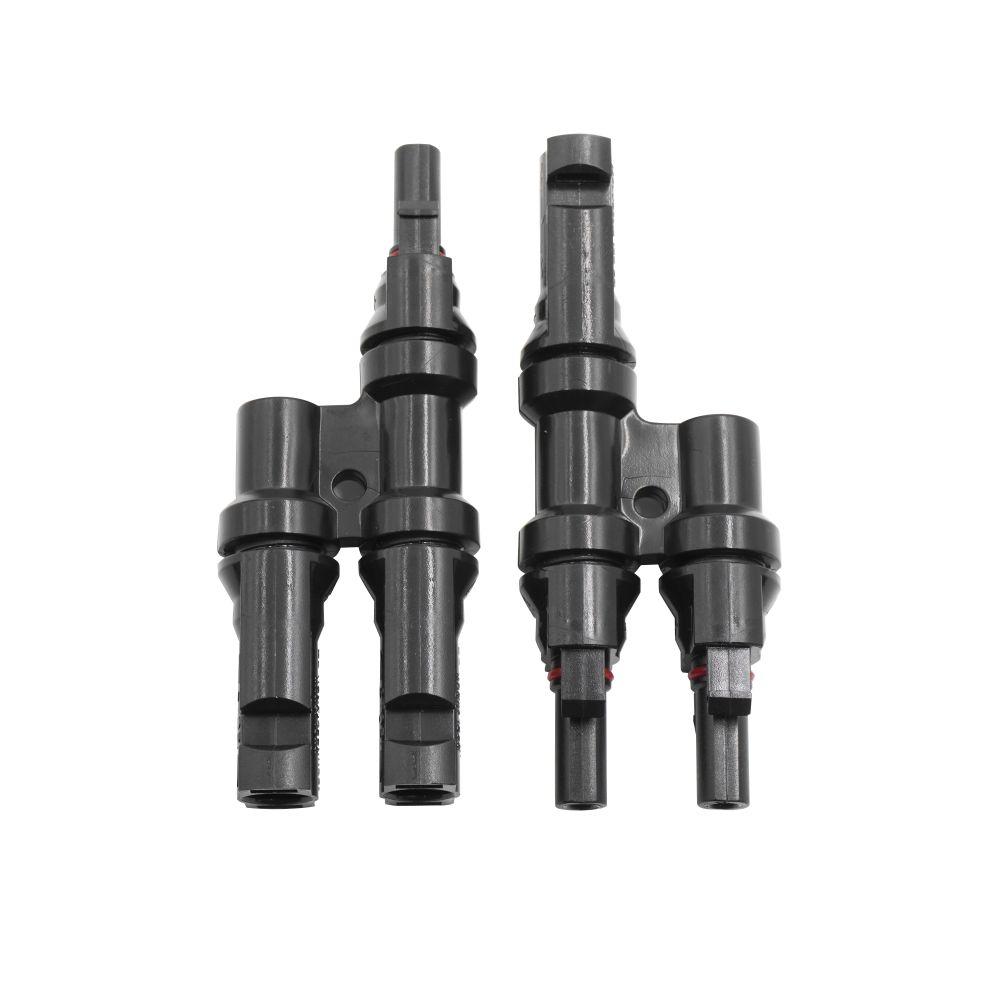

What Is the T-Type Connector?

The T-type connector is a specialized component designed to streamline solar installations. It connects multiple photovoltaic panels in a solar power system, ensuring a smooth flow of electricity. Its unique T-shaped design allows you to link panels efficiently without the need for complex wiring. This connector is an essential tool for creating a reliable and high-performing solar energy setup.

Tip: Using the T-type connector can save you time and effort during installation, making it a favorite among professionals and DIY enthusiasts alike.

Key Features for Enhanced Performance

The T-type connector offers several features that enhance its performance in solar systems. These include:

• High Voltage and Current Capacity: It supports up to DC 1000V and 30A, ensuring compatibility with modern solar setups.
• Secure Locking Mechanism: The male and female heads feature a buckle lock system that prevents accidental disconnections.
• Ergonomic Design: Its user-friendly structure simplifies installation, even in tight spaces.

These features ensure that your solar system operates efficiently and reliably, even under demanding conditions.

Durable Materials and Safety Standards

The T-type connector is built from high-strength PPO insulating material. This material provides excellent heat resistance, flame resistance, and durability. It also resists wear, pollution, and environmental damage. Additionally, the connector meets industry safety standards, offering watertight and dust-proof seals to protect sensitive components. You can trust it to maintain performance over time, even in harsh outdoor environments.

Note: The T-type connector undergoes rigorous testing to ensure it meets the highest durability and safety standards.

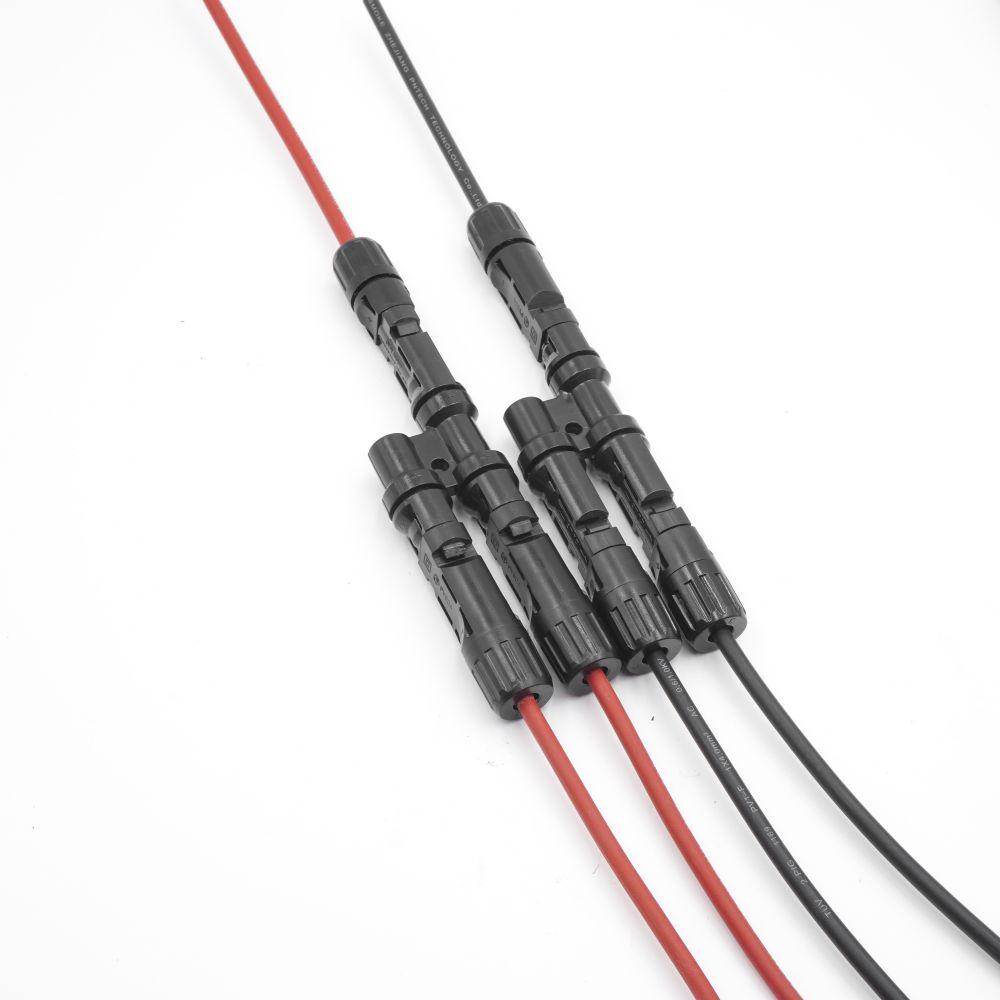

Simplifying Solar Installations with the T-Type Connector

Reducing Installation Complexity

The T-type connector makes solar installations straightforward. Its T-shaped design allows you to connect multiple photovoltaic panels without complicated wiring. This eliminates the need for additional tools or technical expertise. You can simply snap the male and female connectors together using the secure buckle lock mechanism. This feature ensures a firm connection while saving time during setup. Whether you are a professional installer or a DIY enthusiast, the connector’s ergonomic design makes the process hassle-free.

Tip: Label your cables before connecting them. This small step can further simplify your installation process.

Enhancing Energy Efficiency and Reliability

The T-type connector optimizes energy flow in your solar system. Its high voltage capacity of DC 1000V and current rating of 30A ensure efficient energy transmission. This means you can maximize the output of your solar panels without worrying about energy loss. The watertight and dust-proof seals protect the electrical components, ensuring consistent performance even in harsh weather. By using this connector, you can rely on your solar system to deliver stable and efficient energy for years.

Ensuring Long-Term Durability

Durability is a key feature of the T-type connector. Made from high-strength PPO insulating material, it resists heat, flames, and wear. This ensures the connector remains functional in extreme outdoor conditions. Rigorous testing, including salt spray and damp heat tests, guarantees its reliability over time. With a lifespan of up to 25 years, you can trust this connector to support your solar system for the long haul.

Note: Regularly inspect your connectors to ensure they remain in optimal condition.

Practical Benefits of the T-Type Connector

Ease of Use for Professionals and DIY Enthusiasts

The T-type connector simplifies solar installations for everyone, whether you're a seasoned professional or a DIY enthusiast. Its snap-on locking mechanism ensures quick and secure connections without requiring specialized tools. You can easily attach or detach the male and female connectors, saving time and effort during setup. The ergonomic design makes handling straightforward, even in tight or awkward spaces. This user-friendly approach reduces the learning curve, allowing you to focus on optimizing your solar system.

Tip: Keep a pair of gloves handy during installation to improve grip and protect your hands.

Compatibility with Various Solar Systems

The T-type connector works seamlessly with a wide range of solar panel systems. Its versatile design accommodates different cable sizes, making it adaptable to various installation requirements. Whether you're working on a residential rooftop system or a large commercial project, this connector integrates effortlessly. Its compact size also allows you to use it in space-constrained setups without compromising performance. This flexibility ensures that you can rely on it for diverse solar applications.

Cost-Effectiveness and Long-Term Savings

Investing in the T-type connector offers significant cost benefits. Its durable construction minimizes the need for frequent replacements, reducing long-term expenses. The high-quality materials ensure consistent performance, which helps you avoid costly energy losses. Additionally, its ease of installation saves labor costs, especially for large-scale projects. By choosing this connector, you not only enhance your system's efficiency but also achieve substantial savings over time.

Note: Regular maintenance can further extend the lifespan of your connectors, maximizing your investment.

Tips for Using the T-Type Connector in Solar Systems

Best Practices for Installation

To achieve a seamless installation, start by organizing your tools and components. Lay out the cables and connectors to ensure everything is within reach. Align the male and female ends of the T-type connector properly before snapping them together. This prevents misalignment and ensures a secure fit. Use the buckle lock mechanism to firmly secure the connection. Double-check each connection to confirm it is tight and free of gaps.

Tip: Label your cables before connecting them. This small step can save time during troubleshooting.

Maintenance Tips for Longevity

Regular maintenance keeps your T-type connector in top condition. Inspect the connectors periodically for signs of wear, dirt, or moisture. Clean the surfaces with a dry cloth to remove dust and debris. Avoid using harsh chemicals that could damage the insulating material. Check the buckle locks to ensure they remain functional and secure. If you notice any cracks or damage, replace the connector immediately to maintain system efficiency.

Note: Schedule inspections every six months to catch potential issues early.

Avoiding Common Installation Mistakes

Avoid rushing through the installation process. Improper alignment of the connectors can lead to loose connections and energy loss. Do not force the connectors together if they do not align easily. Instead, check for obstructions or misaligned pins. Ensure the cables are not under tension, as this can strain the connections over time. Always follow the manufacturer’s guidelines to avoid voiding the warranty.

Reminder: Take your time during installation to ensure a reliable and efficient solar setup.

The T-type connector transforms solar installations into a simpler and more efficient process. You can reduce costs, streamline setup, and ensure long-term performance by using this innovative tool. Its reliability makes it an excellent choice for both residential and commercial solar projects. Upgrade your system today and experience the benefits firsthand.

FAQ

How does the T-type connector improve solar system efficiency?

The T-type connector ensures optimal energy flow by reducing energy loss. Its high voltage and current capacity allow your solar panels to perform at their maximum potential.

Tip: Use connectors with watertight seals to maintain efficiency in harsh weather.

Is the T-type connector compatible with all solar panels?

Yes, the T-type connector works with most solar panel systems. Its versatile design accommodates various cable sizes, making it suitable for residential and commercial installations.

How do I ensure a secure connection during installation?

Align the male and female ends carefully before snapping them together. Use the buckle lock mechanism to secure the connection and double-check for tightness.

Reminder: Avoid forcing misaligned connectors to prevent damage.
