3 Things to know about DC cables in solar systems

DC cables play a vital role in solar systems by transmitting electricity from solar panels to other components. They ensure energy flows efficiently and safely. Using a high-quality solar cable prevents energy loss and enhances system performance. Understanding these cables helps you maintain a reliable and efficient solar setup.

Key Takeaways

• Pick good-quality DC cables to reduce energy loss and improve performance.
• Use safe, insulated cables to avoid risks like overheating or fires.
• Choose cables that work well with your solar parts and fit your setup.

The role of DC cables in solar systems

How DC cables enable efficient energy transfer

DC cables play a key role in moving electricity from your solar panels to the rest of your system. These cables carry direct current (DC), which is the type of electricity generated by solar panels. By using the right solar cable, you can reduce energy loss during this transfer. Lower energy loss means more power for your home or business.

The design of DC cables ensures that electricity flows smoothly. They are built to handle the specific voltage and current levels produced by solar panels. This makes them more efficient than general-purpose cables. Choosing the correct cable size and material further improves energy transfer. For example, copper cables are often preferred because they conduct electricity better than other materials.

Differences between DC cables and AC cables

DC cables and AC cables serve different purposes. DC cables carry electricity in one direction, while AC cables handle alternating current, which changes direction. Solar systems use DC cables to connect panels to the inverter, where DC electricity is converted into AC for household use.

Another difference lies in their construction. DC cables often have thicker insulation to handle higher voltages safely. They are also designed to resist outdoor conditions like UV rays and temperature changes. AC cables, on the other hand, are more common in indoor wiring.

Why high-quality solar cables are crucial for performance

Using high-quality solar cables ensures your system operates efficiently and safely. Poor-quality cables can lead to energy loss, overheating, or even system failure. High-quality cables are made from durable materials and meet strict safety standards. They are also designed to withstand harsh weather conditions, ensuring long-term reliability.

Investing in a good solar cable reduces maintenance costs and improves the overall performance of your solar system. It’s a small decision that can make a big difference in the long run.

Safety considerations for solar cables

Importance of insulation and heat resistance

Insulation and heat resistance are critical for the safety of your solar cables. Proper insulation prevents electricity from escaping the cable, reducing the risk of short circuits or electric shocks. High-quality insulation also protects the cable from environmental factors like moisture and UV rays. This ensures the cable remains durable over time.

Heat resistance is equally important. Solar cables often operate in high-temperature environments, especially in outdoor installations. A cable that cannot withstand heat may degrade or melt, leading to system failures or safety hazards. Always choose cables designed to handle the temperature range of your location.

Compliance with fire and electrical safety standards

Using solar cables that meet fire and electrical safety standards is essential. These standards ensure the cables are tested for reliability and safety under various conditions. Look for certifications like UL or IEC when selecting your cables. Certified cables reduce the risk of fire and ensure your system complies with local regulations.

Non-compliant cables can pose serious risks, including electrical fires or damage to your solar system. By choosing certified products, you protect your investment and ensure the safety of your property.

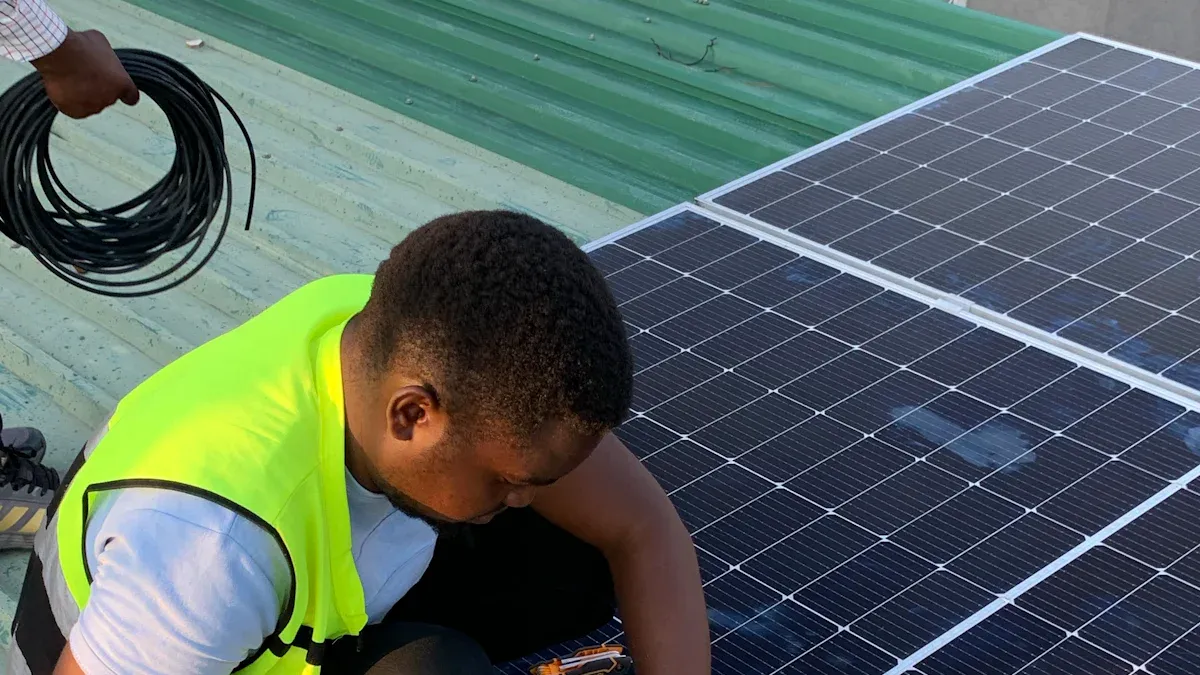

Avoiding common installation mistakes

Improper installation can compromise the safety of your solar cables. Avoid bending cables too sharply, as this can damage the insulation. Ensure all connections are secure to prevent loose wires, which can cause overheating or energy loss. Use proper cable management systems to keep cables organized and protected.

Another common mistake is using the wrong cable size. A cable that is too small may overheat, while an oversized cable can increase costs unnecessarily. Always consult a professional to ensure proper installation and compatibility with your solar system.

Choosing the right solar cable for your system

Key factors: size, material, and voltage rating

Selecting the right solar cable involves understanding three key factors: size, material, and voltage rating. The size of the cable determines how much current it can carry. A cable that is too small may overheat, while an oversized cable can increase costs unnecessarily. Always check the current rating of your solar system to choose the correct size.

The material of the cable also matters. Copper cables are highly efficient at conducting electricity, making them a popular choice. Aluminum cables are lighter and cheaper but less efficient. Consider your budget and energy needs when deciding on the material.

Voltage rating is another critical factor. Solar cables must handle the voltage produced by your solar panels. Using a cable with a lower voltage rating than required can lead to safety hazards. Always match the cable's voltage rating to your system's specifications.

Adapting to environmental conditions

Your solar cables must withstand the environmental conditions of your installation site. Outdoor cables face challenges like UV exposure, rain, and extreme temperatures. Choose cables with UV-resistant insulation and high heat tolerance for outdoor use. For areas with heavy rainfall, ensure the cables are waterproof.

If your system is in a windy or snowy region, secure the cables properly to prevent damage. Adapting your cables to the environment ensures long-term durability and safety.

Ensuring compatibility with solar components

Solar cables must be compatible with the other components of your system. Check the connectors and terminals to ensure they fit securely with your panels, inverters, and batteries. Loose connections can cause energy loss or overheating.

Also, verify that the cable's specifications match the requirements of your solar components. For example, the cable's current and voltage ratings should align with the output of your solar panels. Compatibility ensures your system operates efficiently and safely.

DC cables are essential for your solar system's efficiency and safety.

• Choose high-quality cables to reduce energy loss.
• Follow safety standards to prevent hazards.
• Adapt cables to environmental conditions for durability.

By understanding these aspects, you can make smarter decisions and ensure your solar system performs at its best. 🌞

FAQ

What happens if you use the wrong size DC cable?

Using the wrong size cable can cause overheating or energy loss. Always match the cable size to your solar system's current requirements.

Can you use regular electrical cables for solar systems?

No, regular cables lack the durability and insulation needed for solar systems. Solar cables resist UV rays, heat, and moisture, ensuring long-term safety and efficiency.

How often should you inspect your solar cables?

Inspect your solar cables at least once a year. Look for signs of wear, damage, or loose connections to maintain system performance and safety.

💡 Tip: Regular maintenance extends the lifespan of your solar cables and prevents costly repairs.
