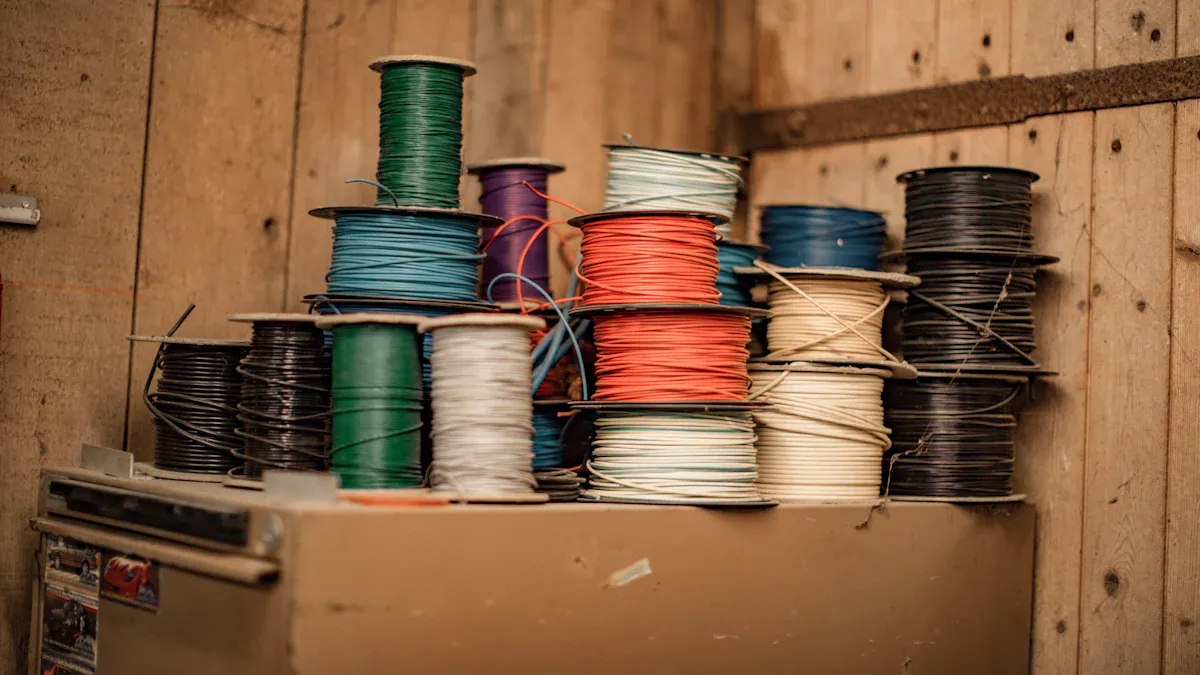

When would you use a 4mm cable?

You often use a 4mm cable in home circuits, Solar Cable setups, or small industrial equipment. Always check if your project needs to carry up to 32 amps. Select the right cable size for safety. Proper cable choice helps prevent overheating and keeps your installation working well.

Key Takeaways

• Use a 4mm cable for home circuits, solar setups, and small machines that need up to 32 amps of current.
• Always choose cables with the right size, good insulation, and proper certifications to ensure safety and prevent overheating.
• Consider cable length, installation environment, and voltage drop to pick the best cable and avoid device problems.

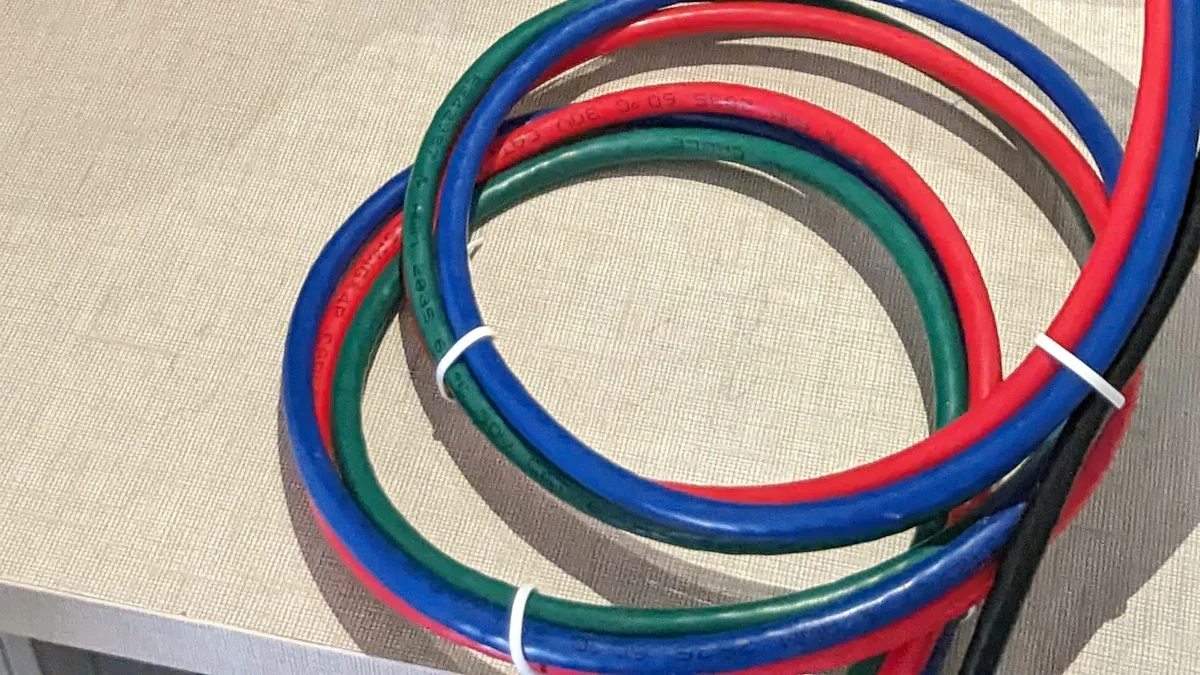

What Is a 4mm Cable?

Key Characteristics

You will find that a 4mm cable refers to the cross-sectional area of the conductor inside the cable. This measurement means the copper or aluminum wire inside the insulation is 4 square millimeters thick. You can use this size for many electrical jobs because it can carry a good amount of current without getting too hot.

• Current Capacity: A 4mm cable can safely carry up to 32 amps in most situations.
• Flexibility: You can bend and route this cable easily, which helps in tight spaces.
• Insulation: The outer layer protects you from electric shock and keeps the wire safe from damage.

Tip: Always check the cable’s label for its voltage rating and temperature limits before you use it.

Common Types and Materials

You will see 4mm cables made from different materials and in several types. Most 4mm cables use copper because it conducts electricity well. Some cables use aluminum, but these are less common in homes.

You might choose a solar cable if you need a wire that resists sunlight and weather. These cables often have extra-strong insulation to last outdoors.

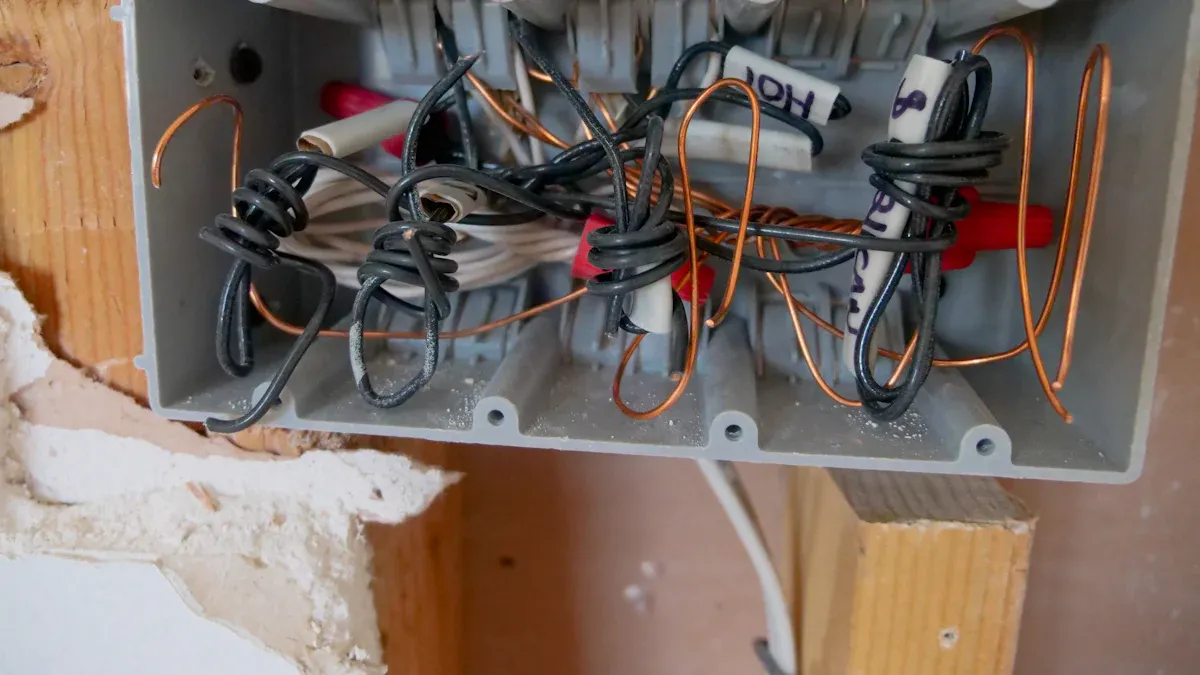

Current-Carrying Capacity and Applications

Ampacity and Safety Factors

You need to know how much current a 4mm cable can carry. This value is called ampacity. Most 4mm cables can handle up to 32 amps. You should always check the cable’s label or datasheet for the exact number. If you use a cable for more current than it can handle, it may overheat. Overheating can cause fires or damage your equipment.

Note: Always use a cable with a higher ampacity than your device needs. This gives you a safety margin.

Some factors can change the ampacity. If you run the cable through insulation or bundle it with other wires, the cable may not cool down well. You should lower the ampacity in these cases. Always follow local electrical codes for safety.

Factors Affecting Suitability (Length, Installation, Voltage Drop)

You must think about more than just ampacity. The length of the cable matters. Longer cables lose more voltage. This is called voltage drop. If the voltage drops too much, your devices may not work right.

• Short runs: You can use a 4mm cable for most home circuits up to 20 meters.
• Long runs: If you need to run the cable farther, you may need a thicker cable to avoid voltage drop.

How you install the cable also affects its performance. If you run the cable in a hot place or bury it underground, it may not cool well. You should check the cable’s rating for these situations.

Practical Scenarios: Home Wiring, Appliances, and Industrial Use

You can use a 4mm cable in many places. In homes, you often use it for circuits that power ovens, cooktops, or electric showers. These devices need more current than lights or small outlets.

• Home wiring: Use 4mm cable for kitchen appliances or electric heaters.
• Appliances: Some washing machines or dryers need a 4mm cable.
• Industrial use: Small machines or tools in workshops may use this size.

You should always check the device’s manual for the right cable size. Using the correct cable keeps your home and workplace safe.

Solar Cable Applications

You often see a 4mm cable used as a solar cable. Solar cable connects solar panels to inverters or batteries. This cable must handle outdoor weather, sunlight, and sometimes long distances.

You should pick a solar cable with strong insulation. This protects the wire from rain, UV rays, and temperature changes. Many Solar Cable Types use 4mm wire because it balances current capacity and flexibility.

Tip: When setting up a solar power system, always check the distance between your panels and inverter. If the run is long, you may need a thicker solar cable to prevent voltage drop.

You can use a 4mm Solar Cable for small to medium solar panel setups. Always follow the manufacturer’s guide for your system.

Additional Considerations (Certifications, Environmental Resistance, Connectors)

You should look for cables with the right certifications. Certified cables meet safety standards. This helps protect your home or business.

If you use a cable outdoors or in harsh places, pick one with good environmental resistance. Some cables resist water, oil, or sunlight. Solar cable often has extra protection for outdoor use.

You also need to use the right connectors. Good connectors keep the cable secure and prevent power loss. Always match the connector size to your 4mm cable.

Reminder: Never use a damaged cable or connector. Replace them right away to keep your system safe.

You use a 4mm cable for home circuits, solar systems, and small machines. Always check the current, cable length, and environment.

• Pick the right cable for safety.
• Look for certifications.

For complex jobs, ask a licensed electrician or check local electrical codes.

FAQ

Can you use a 4mm cable for outdoor wiring?

Yes, you can use a 4mm cable outdoors. Pick one with UV and water resistance. Always check for outdoor-rated insulation.

What happens if you overload a 4mm cable?

Overloading causes the cable to heat up. This can melt insulation or start a fire. Always match the cable to your device’s current needs.

How do you know if a 4mm cable is the right size?

• Check your device’s current rating.
• Measure the cable length.
• Use a cable size chart.

When unsure, ask a licensed electrician.
