solar cable with connectors

You use a Solar Cable with connectors to link solar panels safely and efficiently. These cables help you avoid loose connections. Reliable connectors protect you from electrical faults. You benefit from easy installation, improved durability, and secure energy transfer.

Key Takeaways

• Use solar cables with connectors to ensure safe and efficient connections between solar panels.
• Always check that connectors click into place for a secure fit, which helps prevent power loss and safety issues.
• Follow a step-by-step guide for installation, including planning your layout and testing the system for proper function.

Solar Cable Connectors and Their Applications

MC4 and Other Common Connector Types

You often see MC4 connectors when you work with solar cable. MC4 connectors snap together easily and lock in place. This design helps you make quick and safe connections. You can also find other types like MC3, T4, and Amphenol connectors. Each type has a unique shape and locking system. You should always match the connector type to your solar cable and panel.

Advantages of Solar Cable Connectors

Solar cable connectors give you many benefits. You save time during installation because you do not need special tools. The connectors keep water and dust out, so your system lasts longer. You also lower the risk of loose wires, which can cause power loss or safety problems.

Tip: Always check that connectors click into place. A secure connection keeps your solar cable working well.

Where Solar Cable Connectors Are Used

You use solar cable connectors in many places. You connect solar panels on rooftops, in solar farms, or on RVs. You also use them to link panels to inverters and batteries. These connectors help you build a safe and strong solar cable system for homes, schools, and businesses.

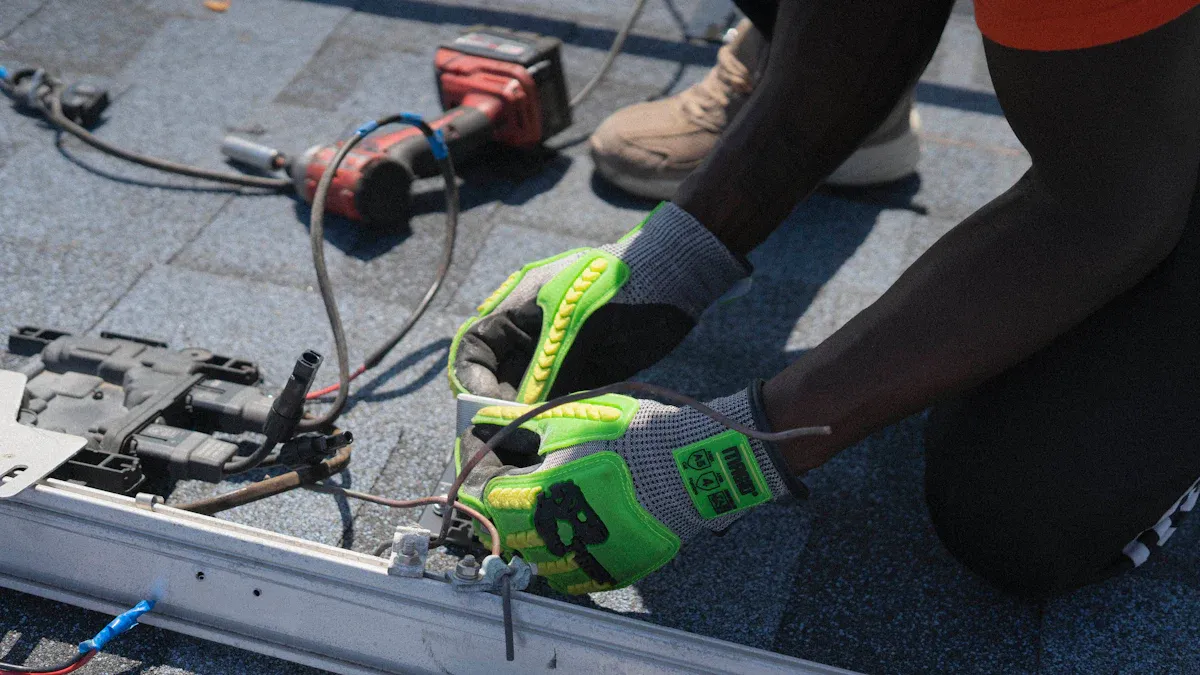

Installing and Connecting Solar Cable

Series and Parallel Connections

You can connect solar panels in two main ways: series or parallel. When you connect panels in series, you link the positive terminal of one panel to the negative terminal of the next. This setup increases the total voltage while the current stays the same. If you connect panels in parallel, you join all the positive terminals together and all the negative terminals together. This method keeps the voltage the same but increases the current.

Tip: Always check your system requirements before choosing a connection type. The right setup helps you get the most power from your solar cable and panels.

Step-by-Step Installation Guide

You can follow these steps to install your solar cable with connectors:

1. Plan Your Layout: Place your solar panels where they get the most sunlight. Measure the distance between each panel and the inverter.
2. Choose the Right Cable: Pick a solar cable that matches your system’s voltage and current needs.
3. Connect the Panels: Use connectors to link the panels in series or parallel, based on your plan.
4. Secure the Cables: Use cable clips or ties to keep the solar cable in place. Avoid sharp bends or tight loops.
5. Connect to the Inverter: Attach the cable ends to the inverter’s input terminals. Make sure the connectors click into place.
6. Test the System: Turn on the system and check for proper voltage and current. Look for any loose connections.

Note: Always follow the manufacturer’s instructions for your connectors and cables.

Safety Tips for Solar Cable Installation

You must stay safe when working with electricity. Here are some important safety tips:

• Turn off all power sources before you start.
• Wear insulated gloves and safety glasses.
• Never touch bare wires or connectors.
• Keep cables away from water and sharp objects.
• Double-check all connections before turning the system on.

⚠️ Alert: If you feel unsure about any step, ask a professional for help.

Selecting Cable Length and Specifications

You need to choose the right length and type of solar cable for your system. Measure the distance from your panels to the inverter. Add extra length for turns and bends. Use a cable with the correct thickness (gauge) for your system’s current. Thicker cables carry more current and reduce power loss.

Tip: Using the right cable size helps your solar system run safely and efficiently.

Disconnecting and Building Solar Cable with Connectors

You may need to disconnect or build a new solar cable with connectors. To disconnect, press the release tabs on the connector and pull gently. Never yank the cable. If you want to build a custom cable, cut the cable to the needed length. Strip the insulation from the ends. Attach the connector pins using a crimping tool. Insert the pins into the connector housing until they click.

Note: Always test your new cable for a secure connection before using it in your solar system.

• Choose cables and connectors that match your system’s voltage and current.
• Check every connection for a secure fit.
• Test your system before regular use.

Tip: You improve safety and efficiency when you follow manufacturer instructions and use the correct cable size for your solar setup.

FAQ

What is the difference between MC4 and MC3 connectors?

MC4 connectors lock together for a secure fit. MC3 connectors do not lock. You get better safety and weather protection with MC4 connectors.

Can you reuse solar cable connectors?

You can reuse connectors if they stay undamaged. Always check for wear or corrosion before reusing. Replace any connector that looks worn out.

How do you know if your solar cable connection is secure?

You should hear a click when you connect. Gently pull to test the fit.

Tip: Loose connections can cause power loss or safety risks.
