How far can you run solar DC cables

You need to keep most Solar Cable runs under 100 feet for 12V systems. Higher voltage systems let you extend up to 200-300 feet. Long cable runs cause voltage drop. This leads to wasted energy and poor performance. Choose the right cable size to protect your system’s efficiency.

Key Takeaways

• Keep solar cable runs short to reduce power loss and maintain system efficiency.
• Use thicker cables or higher voltage systems to safely extend cable length and lower voltage drop.
• Calculate voltage drop before installation to choose the right wire size and protect your solar equipment.

What Affects Solar Cable Run Distance?

Voltage Drop and Why It Matters

Voltage drop happens when electricity travels through a wire and loses some of its power. You want your solar system to deliver as much energy as possible. If the voltage drops too much, your devices may not work well. You might notice lights dimming or batteries charging slowly.

Tip: Try to keep voltage drop below 3%. This helps your solar system run smoothly.

Solar Cable Thickness (Wire Gauge)

The thickness of your solar cable plays a big role in how far you can run it. Thicker cables have less resistance. This means electricity flows more easily and loses less power. You measure cable thickness in "gauge." Lower gauge numbers mean thicker wires. For example, 10 AWG is thicker than 14 AWG.

Here is a simple table to help you understand:

Wire Gauge (AWG)	Thickness	Resistance (Ohms/1000ft)
10	Thicker	1.0
12	Medium	1.6
14	Thinner	2.5

If you need to run a solar cable a long distance, choose a thicker wire. This keeps voltage drop low and protects your system.

System Voltage Choices

The voltage of your solar system affects how far you can run your cables. Higher voltage systems, like 24V or 48V, let you use longer cables. This is because higher voltage means less current for the same amount of power. Less current means less voltage drop.

For example:

• A 12V system may only allow a 100-foot cable run.
• A 48V system can let you run cables 300 feet or more.

If you plan to install solar panels far from your batteries or inverter, consider using a higher voltage system.

Current and Power Output

Current is the flow of electricity through your solar cable. More current means more power loss if your cable is too thin or too long. High-power solar panels send more current through the wires. If you use a thin cable with high current, you risk overheating and wasting energy.

You can use these tips to manage current and power output:

• Use thicker cables for high-power systems.
• Keep cable runs as short as possible.
• Check the current rating of your cable before installation.

Note: Always match your cable size to your system’s current and power needs. This keeps your solar setup safe and efficient.

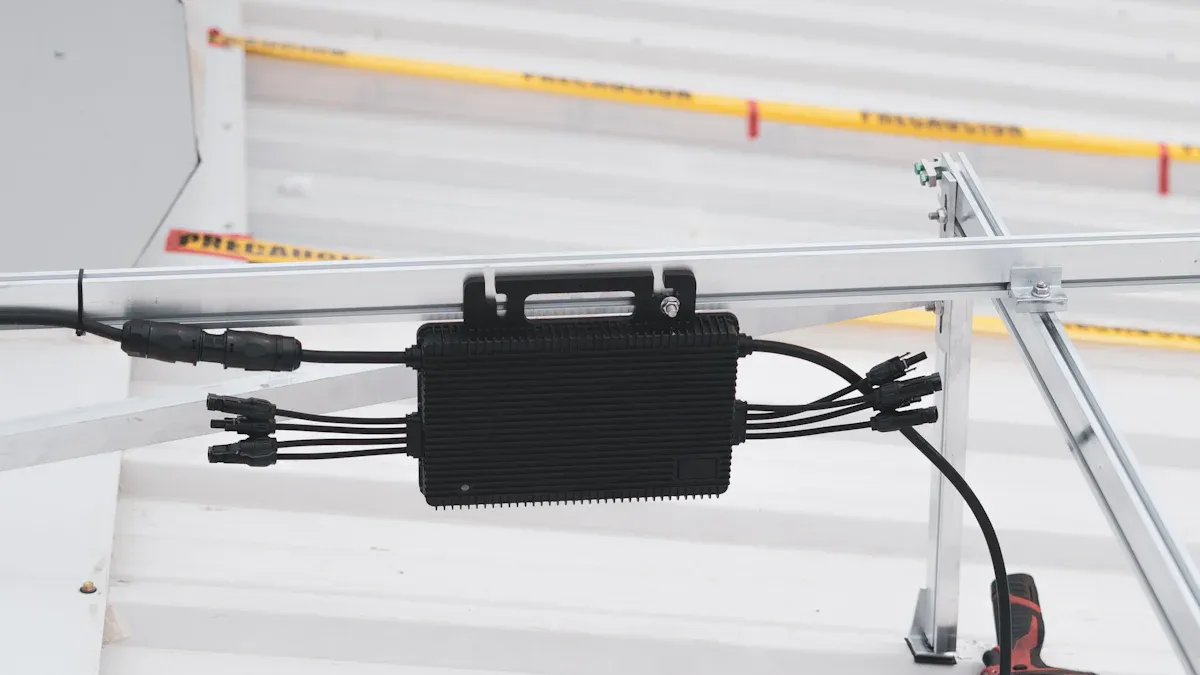

Calculating Maximum Solar Cable Length

Acceptable Voltage Drop (2%-3% Rule)

You want your solar system to work efficiently. Voltage drop tells you how much power you lose as electricity travels through the wire. Most experts recommend keeping voltage drop between 2% and 3%. This small loss helps your devices run well and keeps your batteries healthy.

Tip: If you keep voltage drop below 3%, you protect your equipment and save energy.

A lower voltage drop means more power reaches your appliances. If you let voltage drop get too high, your system may not work as expected. Always check the voltage drop before you install your cables.

Step-by-Step Calculation Guide

You can figure out the maximum length for your solar cable by following a few simple steps. Here is a guide to help you:

1. Find Your System Voltage and Current

   • Look at your solar panel specs. Write down the voltage (V) and current (A).

2. Choose Your Voltage Drop Limit

   • Decide if you want a 2% or 3% voltage drop.

3. Use the Voltage Drop Formula

   • The formula for DC systems is:

     Cable Length (feet) = (Voltage Drop Limit × Voltage) / (2 × Current × Cable Resistance per 1000ft)

   • You can find the cable resistance in a wire gauge table.

4. Pick Your Wire Gauge

   • Thicker wires have lower resistance. Use a table to match your wire gauge to its resistance.

5. Calculate the Maximum Length

   • Plug your numbers into the formula. This gives you the longest safe cable run.

Note: Always round down your result. This gives you a safety margin.

Example Calculations for Common Solar Setups

Let’s look at two examples. These will show you how to use the formula for different systems.

Example 1: 12V System, 10A Current, 10 AWG Wire

• System Voltage: 12V
• Current: 10A
• Voltage Drop Limit: 3% of 12V = 0.36V
• 10 AWG Resistance: 1.0 ohm per 1000ft

Plug into the formula:

Cable Length = (0.36 × 12) / (2 × 10 × 1.0)  Cable Length = 4.32 / 20  Cable Length = 0.216 (in 1000ft units)  Cable Length = 216 feet

You can run your solar cable up to 216 feet with these settings.

Example 2: 24V System, 10A Current, 12 AWG Wire

• System Voltage: 24V
• Current: 10A
• Voltage Drop Limit: 3% of 24V = 0.72V
• 12 AWG Resistance: 1.6 ohms per 1000ft

Plug into the formula:

Cable Length = (0.72 × 24) / (2 × 10 × 1.6)  Cable Length = 17.28 / 32  Cable Length = 0.54 (in 1000ft units)  Cable Length = 540 feet

With a 24V system and 12 AWG wire, you can run the cable up to 540 feet.

Remember: These examples use simple numbers. Always check your own system specs and use the right wire gauge for safety.

How to Minimize Power Loss in Solar Cable Runs

Use Thicker Solar Cables

You can lower power loss by choosing a thicker solar cable. Thicker wires have less resistance. This means electricity moves more easily from your solar panels to your batteries or inverter. If you use a thin wire, you lose more energy as heat. Always check the wire gauge before you buy. A lower gauge number means a thicker wire. For long runs, pick a thicker cable to keep your system efficient.

Tip: Use a wire gauge chart to match your cable size to your system’s needs.

Increase System Voltage

You can also reduce power loss by raising your system voltage. Higher voltage systems, like 24V or 48V, carry the same power with less current. Less current means less voltage drop. If you plan a long cable run, consider switching to a higher voltage setup. This change lets you use thinner cables or run cables farther without losing much energy.

Keep Cable Runs Short

Shorter cable runs always help you save energy. Place your solar panels close to your batteries or inverter. Measure the distance before you install anything. Try to keep the path as straight as possible. Fewer bends and shorter lengths mean less resistance and less power loss.

Special Cases: Remote Installations and Best Practices

Remote solar setups need extra planning. If you must place panels far from your power system, use the thickest cable you can afford. You might also use higher voltage panels. Always protect your cables from weather and animals. Use conduit or bury the cable if needed. Check your connections often to make sure everything stays safe and efficient.

---

• Keep your cable runs short to reduce power loss.
• Choose thicker wires or a higher voltage system for longer distances.
• Always calculate voltage drop before you install any solar cable.

Following these tips helps you build a safe and efficient solar setup.

FAQ

How do you choose the right wire gauge for your solar system?

You check your system voltage and current. Use a wire gauge chart. Pick a thicker wire for longer runs or higher current.

What happens if your solar cable is too long?

You lose more power as heat. Your devices may not work well. Always keep cable runs as short as possible.

Can you bury solar DC cables underground?

Yes, you can. Use cables rated for direct burial. Protect them with conduit for extra safety.
